粗制沉頭帶榫螺栓Table4 BS 325 - 1947

選擇規格尺寸 點擊↓

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

1

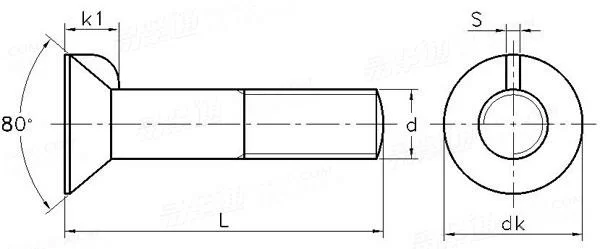

BS  325 - 1947 粗制沉頭帶榫螺栓Table4

尺寸單位: inch
英标BS 325 - 1947 BS325 325BS 粗制沉頭帶榫螺栓Table4
BS  325 - 1947 粗制沉頭帶榫螺栓Table4
掃一掃分享
螺紋規格
d
1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1
PP BSW
dk
k1
s
20 18 16 14 12 11 10 9 8
0.459 0.574 0.69 0.805 0.92 1.149 1.379 1.609 1.839
0.218 0.234 0.28 0.327 0.358 0.42 0.509 0.561 0.625
0.062 0.078 0.094 0.109 0.125 0.156 0.188 0.219 0.25
注:技術數據僅供參考,請以官方原件為準!
