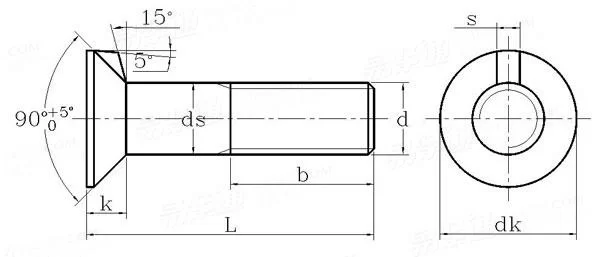

C級沉頭帶榫螺栓 UNI 6105 - 1967

選擇規格尺寸點擊↓

M10

M12

(M14)

M16

M20

(M22)

括号内尺寸為非優選

尺寸單位: mm

意大利UNI 6105 - 1967 UNI6105 6105UNI C級沉頭帶榫螺栓

掃一掃分享

單重計算公差

螺紋規格
d

M10

M12

(M14)

M16

M20

(M22)

P	螺距
b	最大值
b	最小值
d_s	最大值
d_s	最小值
d_k	最大值
d_k	最小值
s	最大值
s	最小值
k	最大值
k	最小值

1.5	1.75	2	2	2.5	2.5
29	33.5	38	42	51	55
26	30	34	38	46	50
10.29	12.35	14.35	16.35	20.42	22.42
9.71	11.65	13.65	15.65	19.58	21.58
20.65	24.65	28.65	32.8	36.8	40.8
19.35	23.35	27.35	31.2	35.2	39.2
3	3	3.5	4	4.5	5
2.4	2.4	2.75	3.25	3.75	4.25
5.3	6.7	6.9	8.1	8.5	8.9
5	6.34	6.54	7.74	8.14	8.54

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
