圓柱沉頭帶榫螺栓 DIN 792 - 1976

選擇規格尺寸 點擊↓

M24

M30

M33

M36

M39

M42

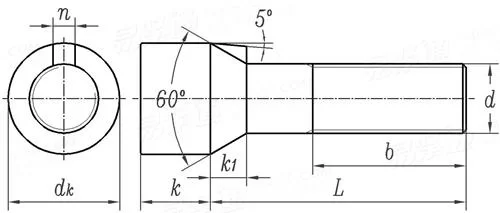

DIN  792 - 1976 圓柱沉頭帶榫螺栓

尺寸單位: mm
德标DIN 792 - 1976 DIN792 792DIN 圓柱沉頭帶榫螺栓
DIN  792 - 1976 圓柱沉頭帶榫螺栓
掃一掃分享
千件重及價格計算 千件重 : kg x 元/kg = 元/千件
默認密度 g/cm3
公稱長度L 注:選擇後獲得 相應重量
螺紋規格
d
M24 M30 M33 M36 M39 M42
P 粗牙
細牙
b
k
dk
k1
n
3 3.5 3.5 4 4 4.5
2 2 2 3 3 3
54 66 72 78 84 90
25 30 30 35 40 40
38 48 52 58 62 68
12.1 15.6 16.4 18.2 19.9 22.6
6.6 6.6 7.6 8.6 8.6 8.6
千件鋼制重≈kg
- - - - - -
注:技術數據僅供參考,請以官方原件為準!
