抗剪型MJ螺紋高鎖螺母 HB 6508 - 2005

選擇規格尺寸點擊↓

MJ4

MJ5

MJ6

MJ8

MJ10

尺寸單位: mm

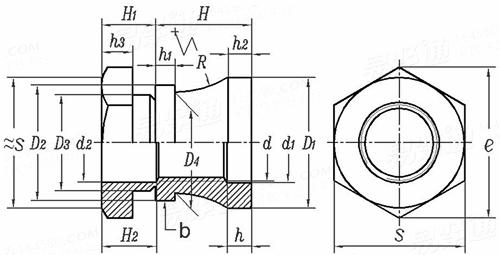

航空HB 6508 - 2005 HB6508 6508HB 抗剪型MJ螺紋高鎖螺母

掃一掃分享

公差

螺紋尺寸
d

MJ4

MJ5

MJ6

MJ8

MJ10

P	螺距
d₁	最小值=公稱
d₁	最大值
d₂	+0.05, 0
e	最小值
D₁	最大值=公稱
D₁	最小值
D₂	最大值=公稱
D₂	最小值
D₃
D₄
H	±0.2
H1	0, -0.2
H2	+0.2, 0
h	+0.25, 0
h₁	±0.15
h₂	+0.25, 0
h₃
s	最大值=公稱
s	最小值
R	參考

0.7	0.8	1	1	1.25
4.4	5.4	6.4	8.4	10.4
4.475	5.475	6.49	8.49	10.51
4.15	5.15	6.15	8.15	10.2
8.8	10	11.2	15.8	19.2
7.4	8.4	10	14	17
7.31	8.31	9.91	13.89	16.89
6.58	7.5	9	12	15
6.522	7.442	8.942	11.93	14.93
5.35	6.7	7.5	10	12.5
5.7	6.6	7.6	10.7	13
7	7.5	8.5	11	12.5
4.4	4.5	5	6	7
4.4	4.6	5.1	6.1	7.1
2.5	2.5	2.6	3	3.2
1.5	1.5	1.8	2.2	2.5
2.5	2.5	2.6	3	3
2.5	2.5	3	3.5	4
8	9	10	14	17
7.64	8.64	9.64	13.57	16.57
7.2	7.2	7.6	11	13.2

①,b. 收口：在保證鎖緊性能的前提下，收口參數由工藝自行決定。

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

緊固件公差（螺栓、螺柱、螺釘和螺母）

GB 3103.2 - 1982

緊固件公差 - 用于精密機械的螺栓、螺釘和螺母

注：技術數據僅供參考，請以官方原件為準！
