六角蓋形自鎖螺母, 250°F MS 51865 - 1970

選擇規格尺寸點擊↓

10#

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

尺寸單位: inch

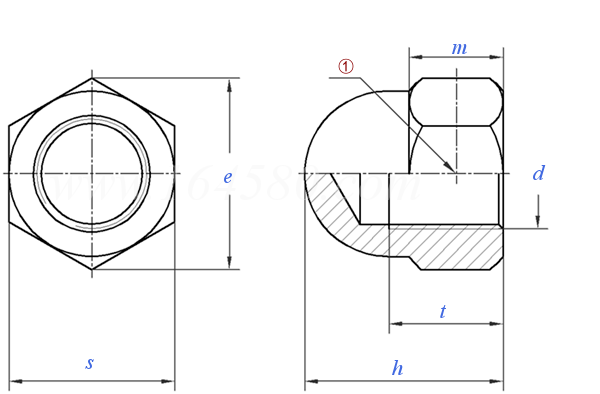

美國軍标MS 51865 - 1970 MS51865 51865MS 六角蓋形自鎖螺母, 250°F

掃一掃分享

公差美制螺紋極限尺寸米/英制螺紋對照

規格

10#

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

PP	-2B	UNC
		UNF
s	公稱
	最大值
	最小值
e	最大值
	最小值
h
m
t

32	32	24	20	18	16	14	13	12	11	10
40	36	32	28	24	24	20	20	18	18	16
5/16	5/16	3/8	7/16	1/2	9/16	5/6	3/4	7/8	15/16	1-1/16
0.3125	0.3125	0.375	0.4375	0.5	0.5625	0.625	0.75	0.875	0.9375	1.0625
0.302	0.302	0.362	0.428	0.489	0.551	0.612	0.736	0.561	0.922	1.045
0.361	0.361	0.433	0.505	0.577	0.65	0.722	0.866	1.01	1.083	1.227
0.344	0.344	0.413	0.488	0.557	0.628	0.695	0.84	0.982	1.051	0.191
0.34	0.34	0.41	0.47	0.53	0.62	0.69	0.81	0.94	1	1.16
0.16	0.16	0.19	0.22	0.25	0.28	0.31	0.38	0.44	0.47	0.53
0.16	0.16	0.19	0.25	0.31	0.38	0.44	0.5	0.56	0.62	0.75

①,鎖緊結構（全金屬或非金屬插入件）可選

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

緊固件公差（螺栓、螺柱、螺釘和螺母）

GB 3103.2 - 1982

緊固件公差 - 用于精密機械的螺栓、螺釘和螺母

注：技術數據僅供參考，請以官方原件為準！
