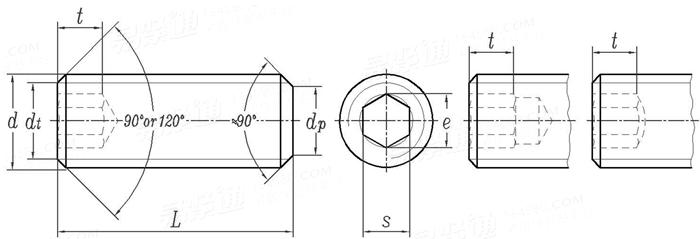

内六角平端緊定螺釘 KS B 1028 (T1) - 1990 (R2020)

選擇規格尺寸點擊↓

M1.6

M2.5

M10

M12

M16

M20

M24

尺寸單位: mm

韓标KS B1028 (T1) - 1990 (R2020) KS1028 10 内六角平端緊定螺釘

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

螺紋尺寸
d

M1.6

M2.5

M10

M12

M16

M20

M24

P	螺距
d_p	最大值
	最小值
e	最小值
s	公稱
	最小值
	最大值
t	1	最小值
	2	最小值
L₀ ^②	公稱

0.35	0.4	0.45	0.5	0.7	0.8	1	1.25	1.5	1.75	2	2.5	3
0.8	1	1.5	2	2.5	3.5	4	5.5	7	8.5	12	15	18
0.55	0.75	1.25	1.75	2.25	3.2	3.7	5.2	6.64	8.14	11.57	14.57	17.57
0.803	1.003	1.427	1.73	2.3	2.87	3.44	4.58	5.72	6.86	9.15	11.43	13.72
0.7	0.9	1.3	1.5	2	2.5	3	4	5	6	8	10	12
0.711	0.889	1.27	1.52	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	12.032
0.724	0.902	1.295	1.545	2.045	2.56	3.08	4.095	5.095	6.095	8.115	10.115	12.142
0.7	0.8	1.2	1.2	1.5	2	2	3	4	4.8	6.4	8	10
1.5	1.7	2	2	2.5	3	3.5	5	6	8	10	12	15
2	2.5	3	3	4	5	6	6	8	12	16	16	20

①,dt≈螺紋小徑。
②,當L≤L0時為短螺釘；當L＞L0時為長螺釘。

采用标準

ISO 4026 - 1993

内六角平端緊定螺釘

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求
