内鍵槽平端緊定螺釘 ASME/ANSI B 18.3 - 2003

選擇規格尺寸點擊↓

10#

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

尺寸單位: inch

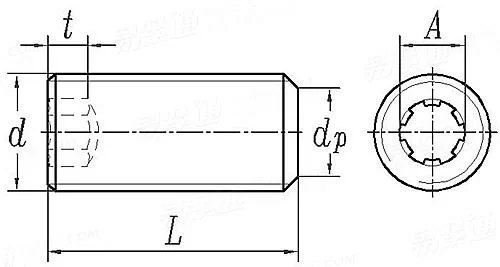

美标ASME/ANSI B18.3 - 2003 ASME/ANSI18.3 1 内鍵槽平端緊定螺釘

掃一掃分享

公差美制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級

螺紋規格
d

10#

d	螺紋直徑
PP	粗牙/UNC
	細牙/UNF
	超細牙/UNEF
A	公稱數量
A	公稱尺寸
t	最小值
d_p	最大值
d_p	最小值
L	公稱

0.0600	0.0730	0.0860	0.0990	0.1120	0.1250	0.1380	0.1640	0.1900
-	64.0	56.0	48.0	40.0	40.0	32.0	32.0	24.0
80.0	72.0	64.0	56.0	48.0	44.0	40.0	36.0	32.0
-	-	-	-	-	-	-	-	-
4	4	4\6	4\6	6	4	6	6	4
0.033	0.033	0.048	0.048	0.060	0.072	0.072	0.096	0.111
0.026	0.035	0.040	0.040	0.045	0.055	0.055	0.080	0.080
0.033	0.040	0.047	0.054	0.061	0.067	0.074	0.087	0.102
0.027	0.033	0.039	0.045	0.051	0.057	0.064	0.076	0.088
0.060	0.130	0.130	0.130	0.130	0.130	0.130	0.190	0.190

螺紋規格
d

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

d	螺紋直徑
PP	粗牙/UNC
	細牙/UNF
	超細牙/UNEF
A	公稱數量
A	公稱尺寸
t	最小值
d_p	最大值
d_p	最小值
L	公稱

0.2500	0.3125	0.3750	0.4375	0.5000	0.6250	0.7500	0.8750
20.0	18.0	16.0	14.0	13.0	11.0	10.0	9.0
28.0	24.0	24.0	20.0	20.0	18.0	16.0	14.0
32.0	32.0	32.0	28.0	28.0	24.0	20.0	20.0
6	6	6	6	6	6	6	6
0.145	0.183	0.216	0.251	0.291	0.372	0.454	0.595
0.125	0.156	0.188	0.219	0.250	0.312	0.375	0.500
0.132	0.172	0.212	0.252	0.291	0.371	0.450	0.530
0.118	0.156	0.194	0.232	0.270	0.347	0.425	0.502
0.250	0.310	0.380	0.440	0.500	0.630	0.750	0.880

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求

注：技術數據僅供參考，請以官方原件為準！
