内六角平端緊定螺釘 [Table 14] (ASTM F912 / F880) ASME B 18.3 (T14 FLAT) - 2012

選擇規格尺寸點擊↓

10#

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

1-3/4

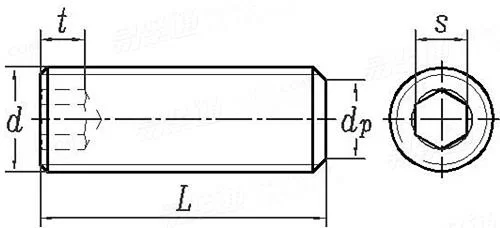

ASME B 18.3 (T14 FLAT) - 2012 内六角平端緊定螺釘 [Table 14] (ASTM F912 / F880)

尺寸單位: inch

美标ASME B18.3 (T14 FLAT) - 2012 ASME18.3 内六角平端緊定螺釘 [Table 14] (ASTM F912 / F880)

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

公稱直徑
d

10#

1/4

5/16

3/8

d	螺紋直徑
PP	粗牙/UNC
	細牙/UNF
	超細牙/UNEF
s	公稱
t	最小值
d_p	最大值
d_p	最小值

0.06	0.073	0.086	0.099	0.112	0.125	0.138	0.164	0.19	0.25	0.3125	0.375
-	64	56	48	40	40	32	32	24	20	18	16
80	72	64	56	48	44	40	36	32	28	24	24
-	-	-	-	-	-	-	-	-	32	32	32
0.028	0.035	0.035	0.05	0.05	0.062	0.062	0.078	0.094	0.125	0.156	0.188
0.05	0.06	0.06	0.07	0.07	0.08	0.08	0.09	0.1	0.125	0.156	0.188
0.033	0.04	0.047	0.054	0.061	0.067	0.074	0.087	0.102	0.132	0.172	0.212
0.027	0.033	0.039	0.045	0.051	0.057	0.064	0.076	0.088	0.118	0.156	0.194

公稱直徑
d

7/16

1/2

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

1-3/4

d	螺紋直徑
PP	粗牙/UNC
	細牙/UNF
	超細牙/UNEF
s	公稱
t	最小值
d_p	最大值
d_p	最小值

0.4375	0.5	0.625	0.75	0.875	1	1.125	1.25	1.375	1.5	1.75	2
14	13	11	10	9	8	7	7	6	6	5	4.5
20	20	18	16	14	12	12	12	12	12	-	-
28	28	24	20	20	20	18	18	18	18	-	-
0.219	0.25	0.312	0.375	0.5	0.562	0.562	0.625	0.625	0.75	1	1
0.219	0.25	0.312	0.375	0.5	0.562	0.562	0.625	0.625	0.75	1	1
0.252	0.291	0.371	0.45	0.53	0.609	0.689	0.767	0.848	0.926	1.086	1.244
0.232	0.27	0.347	0.425	0.502	0.579	0.655	0.733	0.808	0.886	1.039	1.193
