開槽球面柱端螺釘 QJ 2379 - 1992

選擇規格尺寸 點擊↓

M1.6

M2

M2.5

M3

M4

M5

M6

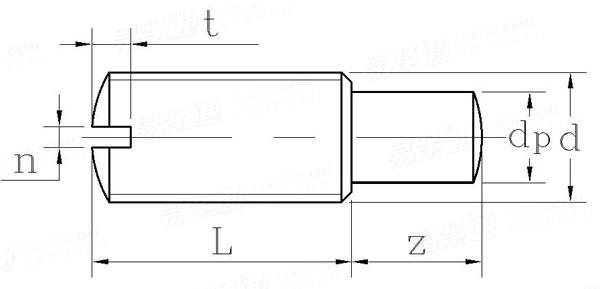

QJ  2379 - 1992 開槽球面柱端螺釘

尺寸單位: mm
航天QJ 2379 - 1992 QJ2379 2379QJ 開槽球面柱端螺釘
QJ  2379 - 1992 開槽球面柱端螺釘
掃一掃分享
螺紋規格
d
M1.6 M2 M2.5 M3 M4 M5 M6
P 螺距
dp 最大值
最小值
n 公稱
最大值
最小值
t 最大值
最小值
0.35 0.4 0.45 0.5 0.7 0.8 1
0.8 1 1.5 2 2.5 3.5 4
0.55 0.75 1.25 1.75 2.25 3.2 3.7
0.25 0.25 0.4 0.4 0.6 0.8 1
0.45 0.45 0.6 0.6 0.8 1 1.2
0.31 0.31 0.46 0.46 0.66 0.86 1.06
0.74 0.84 0.95 1.05 1.42 1.63 2
0.56 0.64 0.72 0.8 1.12 1.28 1.6

技術條件和引用标準

材料
表面處理
其餘技術要求
H62、HPb59-1
鈍化
QJ 2397.1
注:技術數據僅供參考,請以官方原件為準!
