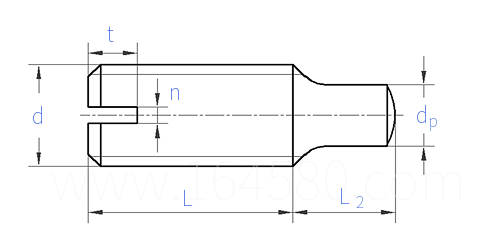

開槽球面柱端螺釘 CNS 4653 - 1983

選擇規格尺寸 點擊↓

M1

M1.2

M1.4

M1.6

(M1.8)

M2

M2.5

M3

(M3.5)

M4

M5

M6

括号内尺寸為非優選
CNS  4653 - 1983 開槽球面柱端螺釘

尺寸單位: mm
台灣CNS 4653 - 1983 CNS4653 4653CNS 開槽球面柱端螺釘
CNS  4653 - 1983 開槽球面柱端螺釘
掃一掃分享
螺紋規格
d
M1 M1.2 M1.4 M1.6 (M1.8) M2 M2.5 M3 (M3.5) M4 M5 M6
dp 最大值=公稱
最小值
n
t 最小值
最大值
0.5 0.7 0.8 0.8 1 1.2 1.5 2 2.5 2.8 3.5 4.5
0.475 0.675 0.775 0.775 0.975 1.175 1.475 1.975 2.475 2.775 3.47 4.47
0.2 0.2 0.2 0.25 0.25 0.25 0.4 0.5 0.5 0.6 0.8 1
0.63 0.63 0.75 0.88 0.88 1 1.1 1.25 1.5 1.75 2 2.5
0.78 0.79 0.94 1.06 1.07 1.2 1.33 1.5 1.78 2.05 2.35 2.9
①,f與z按照CNS 4323螺釘端部标準的規定。
注:技術數據僅供參考,請以官方原件為準!
