鐵路鋼軌接頭螺栓 GOST 11530 - 2014

選擇規格尺寸 點擊↓

M22

M24

M27

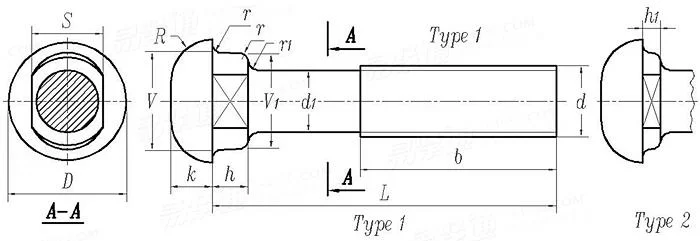

GOST  11530 - 2014 鐵路鋼軌接頭螺栓

尺寸單位: mm
俄标GOST 11530 - 2014 GOST11530 11530GOST 鐵路鋼軌接頭螺栓
GOST  11530 - 2014 鐵路鋼軌接頭螺栓
掃一掃分享
螺紋尺寸
d
M22 M24 M27
D
k
V
V1
S
h
h1
r
r1
b
P 螺距
L 1
2
37 40 46
13 14 17
31 33 38
30 32 37
22 24 27
12 12 12
6 6 6
1~2 1~2 1~2
3 3 3
56 66 66
2.5 3 3
135 150 130;160
140 140;160 150;180
①,R=k;
注:技術數據僅供參考,請以官方原件為準!
