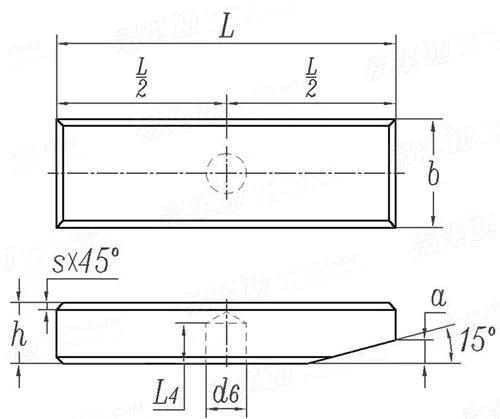

J型平頭帶錐度單孔平鍵 IS 2048 (J) - 1983

選擇規格尺寸點擊↓

100

尺寸單位: mm

印标IS 2048 (J) - 1983 IS2048 2048IS J型平頭帶錐度單孔平鍵

掃一掃分享

公差

基本尺寸
b

b	最大值=公稱
	最小值
h	最大值=公稱
	最小值
s	最小值
	最大值
L	最小值
	最大值
a
d₆
L₄

8	10	12	14	16	18	20	22	25	28	32
7.964	9.964	11.957	13.957	15.957	17.957	19.948	21.948	24.948	27.948	31.938
7	8	8	9	10	11	12	14	14	16	18
6.91	7.91	7.91	8.91	9.91	10.89	11.89	13.89	13.89	15.89	17.89
0.25	0.4	0.4	0.4	0.4	0.4	0.6	0.6	0.6	0.6	0.6
0.4	0.6	0.6	0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8
18	22	28	36	45	50	56	63	70	80	90
90	110	140	160	180	200	220	250	280	320	360
3	3	3	3.5	4	4.5	5	5.5	5.5	6.5	7
4	4	5	6	6	8	8	8	10	12	12
4	4	5	6	6	7	8	8	10	10	12

基本尺寸
b

100

b	最大值=公稱
	最小值
h	最大值=公稱
	最小值
s	最小值
	最大值
L	最小值
	最大值
a
d₆
L₄

36	40	45	50	56	63	70	80	90	100
35.938	39.938	44.938	49.938	55.926	62.926	69.926	79.926	89.913	99.913
20	22	25	28	32	32	36	40	45	50
19.87	21.87	24.87	27.87	31.84	31.84	35.84	39.84	44.84	49.84
1	1	1	1	1.6	1.6	1.6	2.5	2.5	2.5
1.2	1.2	1.2	1.2	2	2	2	3	3	3
100	110	125	140	160	180	200	220	250	280
400	400	400	400	400	400	400	400	400	400
8	9	10	11	13	13	14	16	18	20
16	16	16	16	16	16	20	20	25	25
14	16	16	16	16	16	20	20	25	25

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
