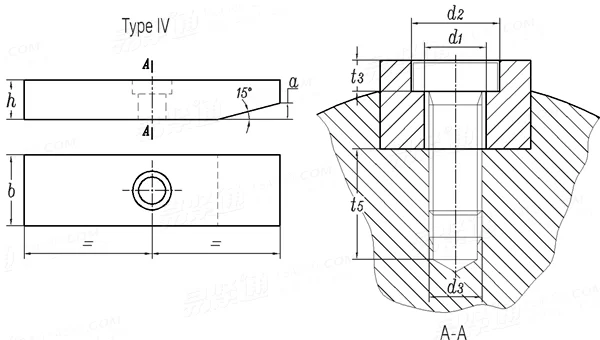

IV型平鍵 UNI 6605 - 1969

選擇規格尺寸點擊↓

8 ×7

10 ×8

12 ×8

14 ×9

16 ×10

18 ×11

20 ×12

22 ×14

25 ×14

28 ×16

32 ×18

36 ×20

40 ×22

45 ×25

50 ×28

56 ×32

63 ×32

70 ×36

80 ×40

90 ×45

100 ×50

尺寸單位: mm

意大利UNI 6605 - 1969 UNI6605 6605UNI IV型平鍵

掃一掃分享

公差

規格 ^①

8
×7

10
×8

12
×8

14
×9

16
×10

18
×11

20
×12

22
×14

25
×14

28
×16

32
×18

b
h
a
d₁
d₂
d₃	6H
t₃
t₅
适用螺紋	螺紋×長度

8	10	12	14	16	18	20	22	25	28	32
7	8	8	9	10	11	12	14	14	16	18
3	3	3	3.5	4	4.5	5	5.5	5.5	6.5	7
3.4	3.4	4.5	5.5	5.5	6.6	6.6	6.6	9	11	11
6	6	8	10	10	11	11	11	15	18	18
M3	M3	M4	M5	M5	M6	M6	M6	M8	M10	M10
2.4	2.4	3.2	4.1	4.1	4.8	4.8	4.8	6	7.3	7.3
7	8	10	10	10	12	12	12	15	17	17
M3×8	M3×10	M4×10	M5×10	M5×10	M6×12	M6×12	M6×16	M8×16	M10×16	M10×20

規格 ^①

36
×20

40
×22

45
×25

50
×28

56
×32

63
×32

70
×36

80
×40

90
×45

100
×50

b
h
a
d₁
d₂
d₃	6H
t₃
t₅
适用螺紋	螺紋×長度

36	40	45	50	56	63	70	80	90	100
20	22	25	28	32	32	36	40	45	50
8	9	10	11	13	13	14	16	18	20
14	14	14	14	14	14	18	18	22	22
20	20	20	20	20	20	26	26	33	33
M12	M12	M12	M12	M12	M12	M16	M16	M20	M20
8.3	8.3	8.3	8.3	8.3	8.3	11.5	11.5	13.5	13.5
20	20	20	20	20	20	24	24	30	30
M12×25	M12×25	M12×30	M12×30	M12×35	M12×35	M16×40	M16×45	M20×50	M20×55

①,b×h

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
