E型 圓頭帶雙孔平鍵 DIN 6885-1 (E) - 2021

選擇規格尺寸 點擊↓

8

10

12

14

16

18

20

22

25

28

32

36

40

45

50

56

63

70

80

90

100

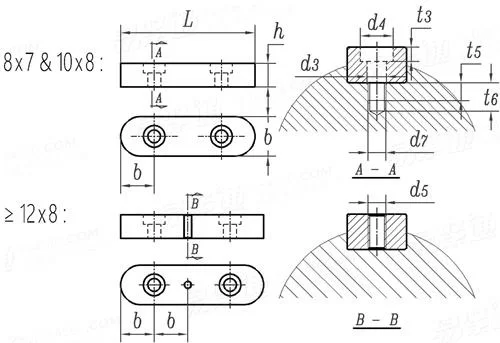

DIN 6885-1 (E) - 2021 E型 圓頭帶雙孔平鍵

尺寸單位: mm
德标DIN 6885-1 (E) - 2021 DIN6885-1 6885-1 E型 圓頭帶雙孔平鍵
DIN 6885-1 (E) - 2021 E型 圓頭帶雙孔平鍵
掃一掃分享
公差
基本尺寸
b
8 10 12 14 16 18 20 22 25 28 32
h
軸徑（最小值）
軸徑（最大值）
b 軸槽 公稱(P9/N9)
(P9) 最小值
最大值
(N9) 最小值
最大值
輪毂槽 公稱(P9/JS9)
(P9) 最小值
最大值
(JS9) 最小值
最大值
d3
d4
d5
t3
d7
t5
t6
7 8 8 9 10 11 12 14 14 16 18
22 30 38 44 50 58 65 75 85 95 110
30 38 44 50 58 65 75 85 95 110 130
8 10 12 14 16 18 20 22 25 28 32
7.949 9.949 11.939 13.939 15.939 17.939 19.926 21.926 24.926 27.926 31.912
7.985 9.985 11.982 13.982 15.982 17.982 19.978 21.978 24.978 27.978 31.974
7.964 9.964 11.957 13.957 15.957 17.957 19.948 21.948 24.948 27.948 31.938
8 10 12 14 16 18 20 22 25 28 32
8 10 12 14 16 18 20 22 25 28 32
7.949 9.949 11.939 13.939 15.939 17.939 19.926 21.926 24.926 27.926 31.912
7.985 9.985 11.982 13.982 15.982 17.982 19.978 21.978 24.978 27.978 31.974
7.982 9.982 11.9785 13.9785 15.9785 17.9785 19.974 21.974 24.974 27.974 31.969
8.018 10.018 12.0215 14.0215 16.0215 18.0215 20.026 22.026 25.026 28.026 32.031
3.4 3.4 4.5 5.5 5.5 6.6 6.6 6.6 9 11 11
6 6 8 10 10 11 11 11 15 18 18
M3 M3 M4 M5 M5 M6 M6 M6 M8 M10 M10
2.4 2.4 3.2 4.1 4.1 4.8 4.8 4.8 6 7.3 7.3
M3 M3 M4 M5 M5 M6 M6 M6 M8 M10 M10
4 5 6 6 6 7 6 8 9 9 11
7 8 10 10 10 12 11 13 15 15 17
基本尺寸
b
36 40 45 50 56 63 70 80 90 100
h
軸徑（最小值）
軸徑（最大值）
b 軸槽 公稱(P9/N9)
(P9) 最小值
最大值
(N9) 最小值
最大值
輪毂槽 公稱(P9/JS9)
(P9) 最小值
最大值
(JS9) 最小值
最大值
d3
d4
d5
t3
d7
t5
t6
20 22 25 28 32 32 36 40 45 50
130 150 170 200 230 260 290 330 380 440
150 170 200 230 260 290 330 380 440 500
36 40 45 50 56 63 70 80 90 100
35.912 39.912 44.912 49.912 55.894 62.894 69.894 79.894 89.876 99.876
35.974 39.974 44.974 49.974 55.968 62.968 69.968 79.968 89.963 99.963
35.938 39.938 44.938 49.938 55.926 62.926 69.926 79.926 89.913 99.913
36 40 45 50 56 63 70 80 90 100
36 40 45 50 56 63 70 80 90 100
35.912 39.912 44.912 49.912 55.894 62.894 69.894 79.894 89.876 99.876
35.974 39.974 44.974 49.974 55.968 62.968 69.968 79.968 89.963 99.963
35.969 39.969 44.969 49.969 55.963 62.963 69.963 79.963 89.9565 99.9565
36.031 40.031 45.031 50.031 56.037 63.037 70.037 80.037 90.0435 100.0435
14 14 14 14 14 14 18 18 22 22
20 20 20 20 20 20 26 26 33 33
M12 M12 M12 M12 M12 M12 M16 M16 M20 M20
8.3 8.3 8.3 8.3 8.3 8.3 11.5 11.5 13.5 13.5
M12 M12 M12 M12 M12 M12 M16 M16 M20 M20
15 13 15 12 13 13 17 18 20 20
22 20 22 19 20 20 24 25 28 28
①,If parallel keys of Types E and F From the 12X8 size upwards are required to be supplied minus boles for jacking screws (oS) this must be specially stated when ordering. In this case the designation reads, for example:

Parallel key EoS 12x8x56 DIN 6885
替代列表
DIN 6885E - 1968 DIN 6885-1 - 2021

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
注：技術數據僅供參考，請以官方原件為準！
