B型平頭平鍵 IS 2048 (B) - 1983

選擇規格尺寸點擊↓

100

尺寸單位: mm

印标IS 2048 (B) - 1983 IS2048 2048IS B型平頭平鍵

掃一掃分享

單重計算公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

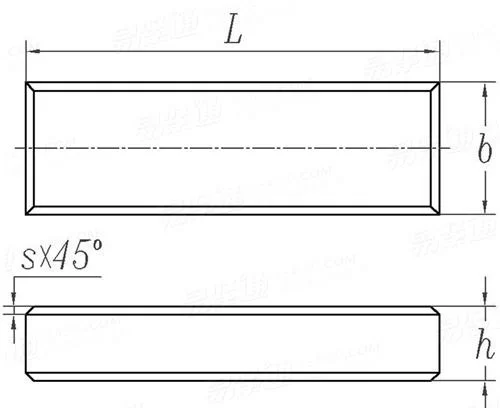

基本尺寸
b

b	最大值=公稱
	最小值
h	最大值=公稱
	最小值
s	最小值
	最大值
L	最小值
	最大值

2	3	4	5	6	8	10	12	14	16	18	20	22
1.975	2.975	3.97	4.97	5.97	7.964	9.964	11.957	13.957	15.957	17.957	19.948	21.948
2	3	4	5	6	7	8	8	9	10	11	12	14
1.975	2.975	3.97	4.97	5.97	6.91	7.91	7.91	8.91	9.91	10.89	11.89	13.89
0.16	0.16	0.16	0.25	0.25	0.25	0.4	0.4	0.4	0.4	0.4	0.6	0.6
0.25	0.25	0.25	0.4	0.4	0.4	0.6	0.6	0.6	0.6	0.6	0.8	0.8
6	6	8	10	14	18	22	28	36	45	50	56	63
20	36	45	56	70	90	110	140	160	180	200	220	250

千件鋼制重≈kg

基本尺寸
b

100

b	最大值=公稱
	最小值
h	最大值=公稱
	最小值
s	最小值
	最大值
L	最小值
	最大值

25	28	32	36	40	45	50	56	63	70	80	90	100
24.948	27.948	31.938	35.938	39.938	44.938	49.938	55.926	62.926	69.926	79.926	89.913	99.913
14	16	18	20	22	25	28	32	32	36	40	45	50
13.89	15.89	17.89	19.87	21.87	24.87	27.87	31.84	31.84	35.84	39.84	44.84	49.84
0.6	0.6	0.6	1	1	1	1	1.6	1.6	1.6	2.5	2.5	2.5
0.8	0.8	0.8	1.2	1.2	1.2	1.2	2	2	2	3	3	3
70	80	90	100	110	125	140	160	180	200	220	250	280
280	320	360	400	400	400	400	400	400	400	400	400	400

千件鋼制重≈kg

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
