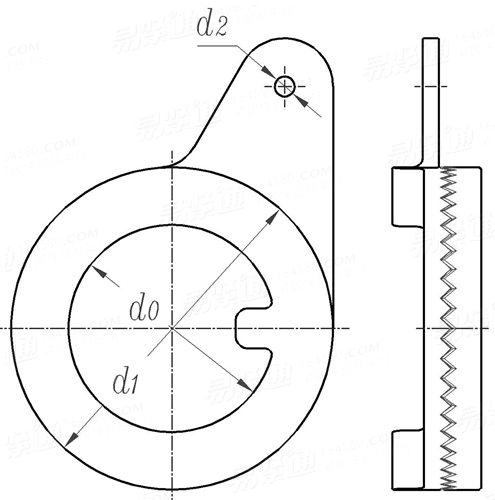

齒形墊圈 HB 6474 - 1990

選擇規格尺寸點擊↓

M10

M12

M14

M16

M18

尺寸單位: mm

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

螺紋尺寸
d

M10

M12

M14

M16

M18

P
d₀
d₁	0，+5
d₂
千件重kg

1	1.25	1.5	1.5	1.5	1.5	1.5
6.3	8.3	10.3	12.3	14.3	16.3	18.3
11	13	16	19	22	25	28
1.6	1.6	1.6	1.6	1.8	1.8	1.8
1.40	1.68	2.96	3.98	5.80	7.84	10.23

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3103.3 - 2020

緊固件公差平墊圈

注：技術數據僅供參考，請以官方原件為準！
