雙頭螺栓 - B.A.螺紋 [Table 7] BS 2693-1 - 1956
![BS 2693-1 - 1956 雙頭螺栓 - B.A.螺紋 [Table 7]](https://img.164580.com/upload/48/standard/2020/07/29/1596003082242832187m.jpg?ue=1733247945&local=cache&tp=canvas&pict=png)
![英标BS 2693-1 - 1956 BS2693-1 2693-1BS 雙頭螺栓 - B.A.螺紋 [Table 7]](https://img.164580.com/upload/48/pic/2020/07/29/1595989580612154427.jpg)
![BS 2693-1 - 1956 雙頭螺栓 - B.A.螺紋 [Table 7]](https://img.164580.com/upload/48/qrcode_standardurl/5385.png)
|
|||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||

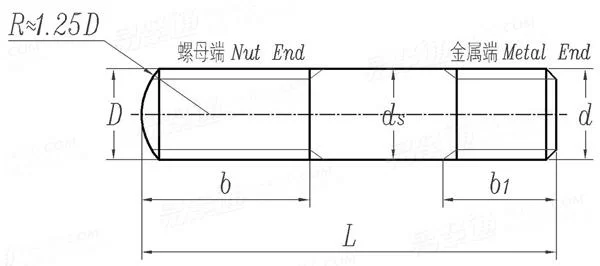

| ①,螺母端: 螺紋長度(b值)不包括不完整螺紋, 且應等于螺紋公稱直徑的兩倍, 除非是由于螺柱較短導緻光杆部分長度小于1/2d, 這樣的情況下, 在将應保證光杆部分長度等于1/2d。 ②,金屬端: 1. 螺柱b1端的螺紋長度應包括不完整螺紋, 且應等于螺紋的标稱直徑或标稱直徑的1.5倍. 2. 螺紋的不完整螺紋長度不應小于2倍螺距或大于2.5倍螺距. 3. 螺紋長度公差應為正負1/32英寸，或正負半螺距，以較大者為準。 ③,螺柱端部： a）金屬端：螺柱的金屬端應具有一個90°夾角的倒角，深度略超過螺紋深度。 b）螺母端：螺柱的螺母端（有統一螺紋的螺柱除外）的精加工半徑約為公稱直徑的1-1/4倍。統一螺紋應在螺母端加工一個短圓柱端，圓柱端直徑約等于但不超過螺紋小徑, 圓柱端長度範圍為1/32~1/16英寸内。 |
注：技術數據僅供參考，請以官方原件為準！
