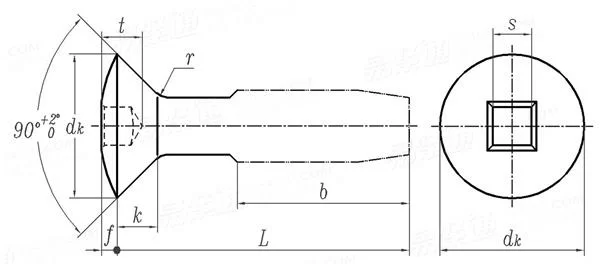

米制四方槽半沉頭自攻釘 [Table 15] ASME B 18.6.5M (T15) - 2000 (R2010)

選擇規格尺寸 點擊↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

M2.5

M3

M3.5

M4

M5

M6

M8

M10

ASME B 18.6.5M (T15) - 2000 (R2010) 米制四方槽半沉頭自攻釘 [Table 15]

尺寸單位: mm
美标ASME B18.6.5M (T15) - 2000 (R2010) ASM 米制四方槽半沉頭自攻釘 [Table 15]
ASME B 18.6.5M (T15) - 2000 (R2010) 米制四方槽半沉頭自攻釘 [Table 15]
掃一掃分享
單重計算 公差
螺紋規格
d
ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
dk 最大值
最小值
k 最大值
f 最大值
r 最大值
最小值
s 參考值
t 參考值
b 最小值
槽号
螺紋及末端型式
1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
5.5 7.3 8.4 9.3 10.3 11.3 15.8 18.3
5.2 6.9 8 8.9 9.9 10.9 15.4 17.8
1.7 2.3 2.6 2.8 3 3.1 4.6 5.2
0.7 0.8 1 1.2 1.3 1.4 2 2.3
1.2 1.4 1.6 2 2.2 2.4 3.2 4
0.6 0.7 0.8 1 1.1 1.2 1.6 2
1.78 2.31 2.84 2.84 3.38 3.38 4.85 4.85
1.68 2.69 3.23 3.23 4.01 4.01 4.93 4.93
17 21 25 29 33 38 38 38
0 1R 2R 2R 3R 3R 4R 4R
AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT AB,B,BF,BT
螺紋規格
d
M2.5 M3 M3.5 M4 M5 M6 M8 M10
P 螺距
dk 最大值
最小值
k 最大值
f 最大值
r 最大值
最小值
s 參考值
t 參考值
b 最小值
槽号
螺紋及末端型式
0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
4.7 5.5 7.3 8.4 9.3 11.3 15.8 18.3
4.4 5.2 6.9 8 8.9 10.9 15.4 17.8
1.5 1.7 2.3 2.7 2.7 3.3 4.6 5
0.6 0.7 0.8 1 1.2 1.4 2 2.3
1 1.2 1.4 1.6 2 2.4 3.2 4
0.5 0.6 0.7 0.8 1 1.2 1.6 2
1.78 1.78 2.31 2.84 2.84 3.38 4.85 4.85
1.68 1.68 2.69 3.23 3.23 4.01 4.93 4.93
15 18 21 24 30 38 38 38
0 0 1R 2R 2R 3R 4R 4R
D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T D,F,T
①,R = 标準型

引用标準

1 [美标]
ASME B 18.6.5M - 2000 (R2010)		 米制自攻螺釘用螺紋及末端型式
Metic threads and points for tapping screws
米制自攻螺釘用螺紋及末端型式

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
注：技術數據僅供參考，請以官方原件為準！
