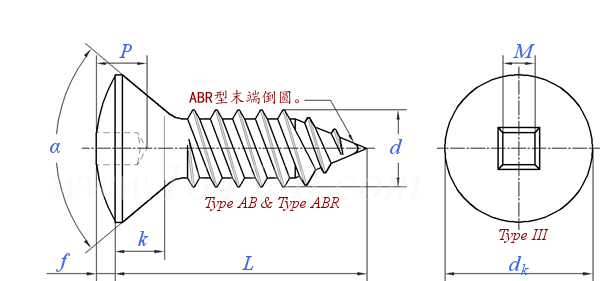

ASME B 18.6.3 (H2B-III+T1A) - 2024 四方槽半沉頭 AB ABR自攻螺釘

尺寸單位: inch

美标ASME B18.6.3 (H2B-III+T1A) - 2024 ASME 四方槽半沉頭 AB ABR自攻螺釘

掃一掃分享

公差最小破壞扭矩牌号等級

螺紋尺寸
d

10#

12#

1/4

5/16

3/8

d	公稱
PP
槽号
M	參考
P	最大值
	最小值
d_k	最大值
	最小值
k	參考
f	參考
α	最大值
	最小值
L₀ ^⑥	公稱
Y ^⑥	螺紋過渡長度(全螺紋)	最大值
b ^⑥	螺紋長度 (長螺釘)	最小值

0.0860	0.0990	0.1120	0.1250	0.1380	0.1510	0.1640	0.1900	0.2160	0.2500	0.3125	0.3750
32	28	24	20	20	19	18	16	14	14	12	12
00	0	0	1R	1R	1R	2R	2R	3R	3R	4R	4R
0.050	0.070	0.070	0.091	0.091	0.091	0.112	0.112	0.133	0.133	0.191	0.191
0.033	0.038	0.038	0.065	0.065	0.065	0.075	0.075	0.095	0.095	0.100	0.100
0.028	0.028	0.028	0.050	0.050	0.050	0.060	0.060	0.080	0.080	0.085	0.085
0.162	0.187	0.212	0.237	0.262	0.287	0.312	0.362	0.412	0.477	0.597	0.717
0.144	0.167	0.191	0.215	0.238	0.262	0.285	0.333	0.380	0.442	0.556	0.670
0.051	0.059	0.067	0.075	0.083	0.091	0.100	0.116	0.132	0.153	0.191	0.230
0.029	0.033	0.037	0.041	0.045	0.049	0.052	0.060	0.068	0.079	0.099	0.117
82°	82°	82°	82°	82°	82°	82°	82°	82°	82°	82°	82°
80°	80°	80°	80°	80°	80°	80°	80°	80°	80°	80°	80°
5/8	3/4	13/16	15/16	1	1-1/8	1-1/4	1-3/8	1-5/8	1-13/16	1-13/16	1-7/8
0.031	0.036	0.042	0.050	0.050	0.053	0.056	0.062	0.071	0.071	0.083	0.083
0.520	0.590	0.670	0.750	0.830	0.910	0.980	1.140	1.300	1.500	1.500	1.500

①,若以小數規定公稱直徑，應省略小數前和小數點後第四位的零。
②,方槽内壁略帶錐度，以保證插入深量規與有鍍層螺釘凹槽的配合。為使插入深測量深度适用于有塗鍍層的螺釘，制造者在生產（镦頭）時，應為其留出必要的加工餘量。
③,表中的“R”表示正常插入深入。
④,螺釘末端釘尖上不允許因螺紋輾壓而形成的虛尖，允許略帶圓弧或圓鈍形末端。
⑤,小于等于8#的螺釘，螺紋牙頂平面寬度不應超過0.004in，大于8#的應不超過0.006in。
⑥,正常情況下，當螺釘長度小于等于其公稱長度L0時應采用全螺紋，過渡螺紋長度應小于等于Y；若螺釘長度大于其公稱長度L0可采用半牙型式，但其螺紋長度應不小于b。

替代列表

ASME B 18.6.3T8-III+T40 - 2013 ASME B 18.6.3H2B-III+T1A - 2024

長度公差

　　Tapping screws can be made to any length, but they are generally produced in fractional length increments of 1/16 in. for screws up to 1/2 in. long, 1/8 in. for screws over 1/2 in. through 1-1/2 in. long, 1/4 in. for screws over 1-1/2 in. through 3 in. long, and 1/2 in. for screws over 3 in. long.

類型	标稱螺釘長度	長度公差
A、AB、BP	≤1	±0.03
A、AB、BP	＞1	±0.05
B、BF、BT、C、D、F、G、T、TRS	≤3/4	-0.03
	＞3/4,≤1-1/2	-0.05
	＞1-1/2	-0.06
