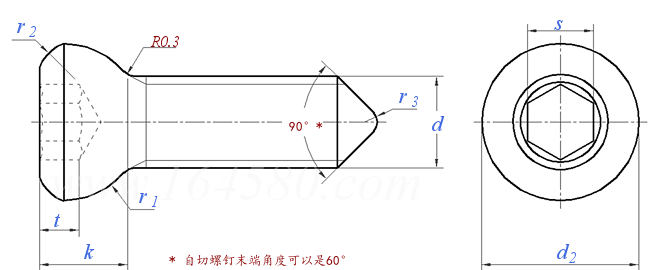

首頁 產品與标準 ISO 5835 (F1) - 1991 内六角接骨螺釘 (HA型) [Figure 1]

内六角接骨螺釘 (HA型) [Figure 1] ISO 5835 (F1) - 1991

選擇規格尺寸 點擊↓

HA1.5

HA2

HA2.7

HA3.5

HA4

HA4.5

HA5

ISO 5835 (F1) - 1991 内六角接骨螺釘 (HA型) [Figure 1]

尺寸單位: mm
國際ISO 5835 (F1) - 1991 ISO5835 5835ISO 内六角接骨螺釘 (HA型) [Figure 1]
ISO 5835 (F1) - 1991 内六角接骨螺釘 (HA型) [Figure 1]
掃一掃分享
公差 最小破壞扭矩 牌号等級
螺紋規格
HA1.5 HA2 HA2.7 HA3.5 HA4 HA4.5 HA5
d
d2 最大值=公稱
最小值
k ≈
r1 最小值=公稱
最大值
r2 ≈
r3 ≈
s 公稱
最大值
最小值
t 最小值
1.5 2 2.7 3.5 4 4.5 5
3 4 5 6 6 8 8
2.9 3.9 4.85 5.85 5.85 7.85 7.85
1.6 1.9 2.3 2.6 2.4 4.6 4.6
1.5 2 2.5 3 3 4 4
1.75 2.25 2.75 3.25 3.25 4.25 4.25
1.5 2 2.5 2.5 2.5 2.5 2.5
0.3 0.4 0.4 1 1 1 1
1.5 1.5 2.5 2.5 2.5 3.5 3.5
1.547 1.547 2.547 2.558 2.558 3.558 3.558
1.507 1.507 2.507 2.51 2.51 3.51 3.51
0.8 1 1.2 1.5 1.5 2.8 2.8

同版本產品組

工藝相關

ISO 5835 (F2) - 1991
淺螺紋（HA型） [Figure 2]

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 3106 - 2016
緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)
GB /T 3 - 1997
普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)
GB /T 5779.1 - 2000
緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求
GB /T 5779.3 - 2000
緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求
GB /T 3103.1 - 2002
緊固件公差（螺栓、螺柱、螺釘和螺母）
GB /T 34632 - 2017
統一螺紋搓制和滾制前的毛坯直徑
GB /T 18685 - 2017
普通螺紋搓制和滾制前的毛坯直徑
GB /T 3105 - 2002
普通螺栓和螺釘 - 頭下圓角半徑
GB /T 5279.2 - 1997
沉頭螺釘 第2部分 十字槽插入深度
GB /T 197 - 2018
普通螺紋 公差
注：技術數據僅供參考，請以官方原件為準！
