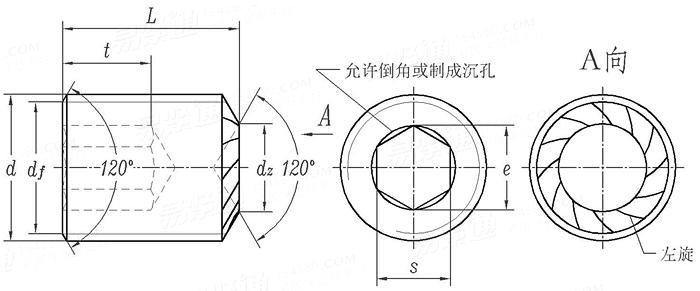

外球面球軸承用緊定螺釘 齒端型（ST） JB /T 7755 (ST) - 2007

選擇規格尺寸 點擊↓

M5

M6

M6

M8

M10

M12

M14

M16

M18

M20

同規格，其他部分尺寸不同
括号内尺寸為非優選
JB /T 7755 (ST) - 2007 外球面球軸承用緊定螺釘 齒端型（ST）

尺寸單位: mm
機械行業JB /T7755 (ST) - 2007 JB7755 7755JB 外球面球軸承用緊定螺釘 齒端型（ST）
JB /T 7755 (ST) - 2007 外球面球軸承用緊定螺釘 齒端型（ST）
掃一掃分享
公差
螺紋尺寸
d
M5 M6 M6 M8 M10 M12 M14 M16 M18 M20
P 螺距
e 最小值
s 公稱
最小值
最大值
t 最小值
dz 最小值
最大值
0.8 0.75 1 1 1.25 1.5 1.5 1.5 1.5 1.5
2.87 3.44 3.44 4.85 5.72 6.86 6.86 9.15 9.15 11.43
2.5 3 3 4 5 6 6 8 8 10
2.52 3.02 3.02 4.02 5.02 6.02 6.02 8.025 8.025 10.025
2.56 3.08 3.08 4.095 5.095 6.095 6.095 8.115 8.115 10.115
3 3.5 3.5 5 6 8 8 10 10 12
2.25 2.75 2.75 4.7 5.7 7.64 7.64 9.64 9.64 13.57
2.5 3 3 5 6 8 8 10 10 14
①,df ≈ 螺紋小徑

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 3106 - 2016
緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)
GB /T 3 - 1997
普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)
GB /T 5779.1 - 2000
緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求
GB /T 5779.3 - 2000
緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求
GB /T 3103.1 - 2002
緊固件公差（螺栓、螺柱、螺釘和螺母）
GB /T 34632 - 2017
統一螺紋搓制和滾制前的毛坯直徑
GB /T 18685 - 2017
普通螺紋搓制和滾制前的毛坯直徑
GB /T 3105 - 2002
普通螺栓和螺釘 - 頭下圓角半徑
GB /T 5279.2 - 1997
沉頭螺釘 第2部分 十字槽插入深度
GB /T 197 - 2018
普通螺紋 公差
注：技術數據僅供參考，請以官方原件為準！
