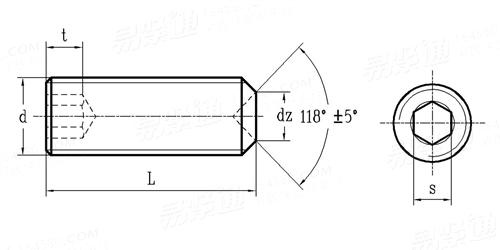

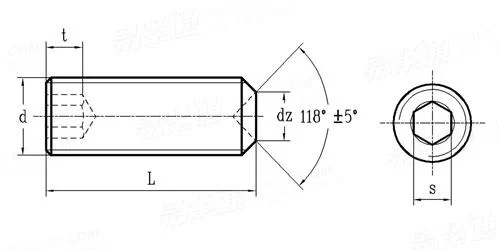

統一螺紋内六角凹端緊定螺釘 Table 6A BS 2470 - 1973

選擇規格尺寸點擊↓

10#

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

尺寸單位: 英寸(inch)

英标BS 2470 - 1973 BS2470 2470BS 統一螺紋内六角凹端緊定螺釘 Table 6A

掃一掃分享

公差美制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級

螺紋規格
d

10#

PP	UNC
PP	UNF
s	公稱
t	最小值
d_z	最大值
d_z	最小值

-	64	56	48	40	40	32	32	24
80	72	64	56	48	44	40	36	32
0.028	0.035	0.035	0.050	0.050	1/16	1/16	5/64	3/32
0.022	0.028	0.028	0.040	0.040	0.050	0.050	0.062	0.075
0.032	0.038	0.043	0.050	0.056	0.062	0.069	0.082	0.095
0.027	0.033	0.038	0.045	0.051	0.056	0.062	0.074	0.086

螺紋規格
d

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

PP	UNC
PP	UNF
s	公稱
t	最小值
d_z	最大值
d_z	最小值

20	18	16	14	13	11	10	9	8
28	24	24	20	20	18	16	14	12
1/8	5/32	3/16	7/32	1/4	5/16	3/8	1/2	9/16
0.100	0.125	0.150	0.175	0.200	0.250	0.300	0.400	0.450
0.125	0.156	0.187	0.218	0.250	0.312	0.375	0.437	0.500
0.114	0.144	0.174	0.204	0.235	0.295	0.357	0.418	0.480
