鎖緊卡組件 JB /T 7919.3 - 1999

選擇規格尺寸 點擊↓

MS44

MS52

MS60

MS64

MS68

MS76

MS80

MS88

MS96

MS500

MS530

MS560

MS630

MS670

MS710

MS750

MS850

MS900

MS950

MS1000

MSL44

MSL48

MSL56

MSL60

MSL64

MSL72

MSL76

MSL84

MSL88

MSL96

MSL530

MSL560

MSL630

MSL670

MSL710

MSL750

MSL850

MSL950

MSL1000

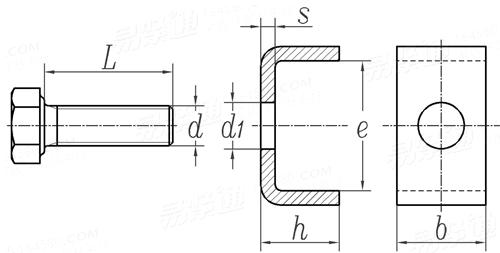

JB /T 7919.3 - 1999 鎖緊卡組件

尺寸單位: mm
機械行業JB /T7919.3 - 1999 JB7919.3 7919.3JB 鎖緊卡組件
JB /T 7919.3 - 1999 鎖緊卡組件
掃一掃分享
公差 公制螺紋極限尺寸 米/英制螺紋對照 螺紋直徑與受力截面積 毛坯直徑
型号
MS44 MS52 MS60 MS64 MS68 MS76 MS80 MS88 MS96 MS500 MS530 MS560 MS630
s
b
h
d1
e
螺栓規格
4 4 4 5 5 5 5 5 5 5 7 7 7
20 24 24 24 28 32 32 36 36 40 40 45 50
12 12 12 15 15 15 15 15 15 15 21 21 21
9 12 12 12 14 14 18 18 18 18 22 22 22
22.5 25.5 30.5 31 38 40 45 43 53 45 51 54 61
/ / M10×20 M10×20 M12×25 M12×25 M16×30 M16×30 M16×30 M16×30 M20×40 M20×40 M20×40
型号
MS670 MS710 MS750 MS850 MS900 MS950 MS1000 MSL44 MSL48 MSL56 MSL60 MSL64 MSL72
s
b
h
d1
e
螺栓規格
7 7 7 7 7 7 7 4 4 4 4 5 5
50 55 60 70 70 70 70 20 20 24 24 24 28
21 21 21 21 21 21 21 12 12 12 12 15 15
22 26 26 26 26 26 26 7 9 9 9 9 9
66 69 70 71 76 78 88 13.5 17.5 17.5 20.5 21 20
M20×40 M24×50 M24×50 M24×50 M24×50 M24×50 M24×50 M6×12 M8×16 M8×16 M8×16 M8×16 M8×16
型号
MSL76 MSL84 MSL88 MSL96 MSL530 MSL560 MSL630 MSL670 MSL710 MSL750 MSL850 MSL950 MSL1000
s
b
h
d1
e
螺栓規格
5 5 5 5 7 7 7 7 7 7 7 7 7
28 32 32 36 40 40 45 45 50 55 60 60 60
15 15 15 15 21 21 21 21 21 21 21 21 21
12 12 14 14 18 18 18 18 18 18 22 22 22
24 24 28 28 34 29 34 39 39 39 44 46 51
M10×20 M10×20 M12×25 M12×25 M16×30 M16×30 M16×30 M16×30 M16×30 M16×30 M20×40 M20×40 M20×40

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
注：技術數據僅供參考，請以官方原件為準！
