螺栓或螺釘和錐形彈性墊圈組合件 GB /T 9074.32 - 2017

選擇規格尺寸點擊↓

M2.5

(M3.5)

M10

M12

括号内尺寸為非優選

尺寸單位: mm

國标GB /T9074.32 - 2017 GB9074.32 9074.32G 螺栓或螺釘和錐形彈性墊圈組合件

掃一掃分享

公差

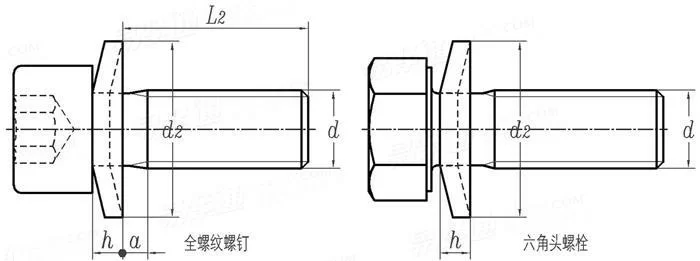

螺紋尺寸
d

M2.5

(M3.5)

M10

M12

a	最大值
L₂ ^①	最小值
d₂	最大值
d₂	最小值
h	最大值
h	最小值

0.9	1	1.2	1.4	1.6	2	2.5	3	3.5
4	4	6	6	6	8	10	12	14
6	7	8	9	11	14	18	23	29
5.7	6.64	7.64	8.64	10.57	13.57	17.57	22.48	28.48
0.72	0.85	1.06	1.3	1.55	2.6	3.1	3.6	4.1
0.61	0.72	0.92	1.12	1.35	2.3	2.8	3.3	3.8

①,最短螺釘長度。
②,除規定尺寸外，其餘尺寸按相應產品标準規定。如G 8/T 70.1。

工藝相關

GB /T 90.1

緊固件驗收檢查（ISO 3269:2000 IDT）

技術條件和引用标準

項目
通用要求
機械性能	等級
	标準
表面處理
驗收及包裝

螺栓或螺釘	錐形彈性墊圈
組合件中墊圈應能自由轉動而不脫落
8.8、10.9	420HV～490HV
GB/T 3098.1	GB/T 94.4
不經處理；電鍍技術要求按GB/T 5267.1；非電解鋅片塗層技術要求按GB/T 5267.2。
GB/T 90.1、GB/T 90.2

引用參考

GB /T 1172

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
