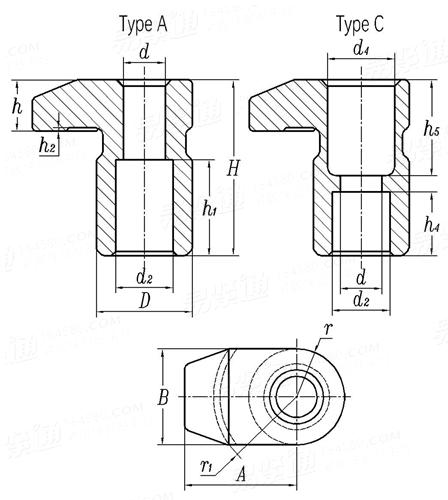

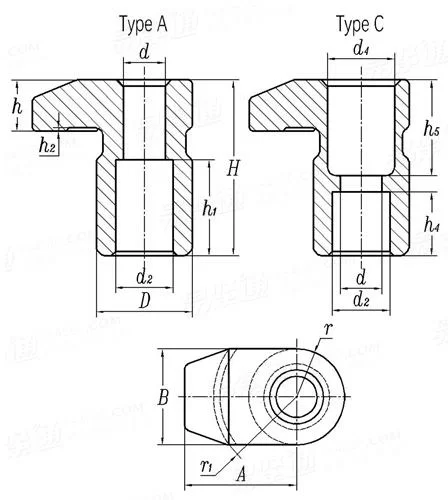

機床夾具零件及部件 - 鉤形壓闆 A型和C型 GB /T 2196 (A/C) - 1991

選擇規格尺寸點擊↓

6.6

同規格，其他部分尺寸不同

GB /T 2196 (A/C) - 1991 機床夾具零件及部件 - 鉤形壓闆 A型和C型

尺寸單位: mm

國标GB /T2196 (A/C) - 1991 GB2196 2196GB 機床夾具零件及部件 - 鉤形壓闆 A型和C型

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

螺紋規格
d

6.6

d
A
B
D	公稱
	最大值
	最小值
H
h
r	最大值
	最小值
r₁
d₂
d₄
h₁
h₂
h₄
h₅
配用螺釘

6.6	6.6	9	9	11	11	13	13	17	17	21	21	25	25
18	24	24	28	28	35	35	45	45	55	55	65	65	75
16	16	20	20	25	25	30	30	35	35	40	40	50	50
16	16	20	20	25	25	30	30	35	35	40	40	50	50
15.984	15.98	19.98	19.98	24.98	24.98	29.98	29.98	34.975	34.975	39.975	39.975	49.975	49.975
15.941	15.928	19.928	19.928	24.928	24.928	29.928	29.928	34.913	34.913	39.913	39.913	49.913	49.913
28	35	35	45	45	58	55	70	70	90	80	100	95	120
8	10	10	13	13	16	16	20	22	25	28	30	32	35
8	8	10	10	12.5	12.5	15	15	17.5	17.5	20	20	25	25
7.91	7.91	9.91	9.91	12.39	12.39	14.89	14.89	17.39	17.39	19.87	19.87	24.87	24.87
14	20	18	24	22	30	26	36	35	45	42	52	50	60
10	10	14	14	16	16	18	18	23	23	28	28	34	34
10.5	10.5	14.5	14.5	18.5	18.5	22.5	22.5	25.5	25.5	30.5	30.5	35	35
16	21	20	28	25	36	30	42	40	60	45	60	50	75
1	1	1	1	1	1	1	1	1.5	1.5	1.5	1.5	2	2
8	14	11	20	16	25	20	30	24	40	24	40	28	50
16	16	20	20	25	25	30	30	40	40	50	50	60	60
M6	M6	M8	M8	M10	M10	M12	M12	M16	M16	M20	M20	M24	M24

工藝相關

技術條件和引用标準

材料
熱處理
-

45鋼按GB 699的規定

HRC 35~40

其他技術條件按GB/T 2259的規定

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
