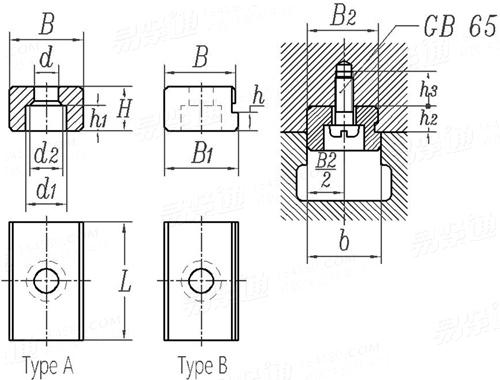

機床夾具零件及部件 - 定位鍵 GB 2206 - 1991

選擇規格尺寸點擊↓

尺寸單位: mm

國标GB 2206 - 1991 GB2206 2206GB 機床夾具零件及部件 - 定位鍵

掃一掃分享

公差

規格

B	最大值=公稱
	h6	最小值
	h8	最小值
B₁
L
H
h
h₁
d
d₁
d₂
b
B₂	公稱
	H7	最大值
		最小值
	Js6	最大值
		最小值
h₂
h₃
螺釘 GB85

8	10	12	14	16	18	20	22	24	28	36	42	48	54
7.991	9.991	11.989	13.989	15.989	17.989	19.987	21.987	23.987	27.987	35.984	41.984	47.984	53.981
7.978	9.978	11.973	13.973	15.973	17.973	19.967	21.967	23.967	27.967	35.961	41.961	47.961	53.954
8	10	12	14	16	18	20	22	24	28	36	42	48	54
14	16	20	20	25	25	32	32	40	40	50	60	70	80
8	8	8	8	10	12	12	12	14	16	20	24	28	32
3	3	3	3	4	5	5	5	6	7	9	10	12	14
3.4	4.6	5.7	5.7	6.8	6.8	6.8	6.8	9	9	13	13	17.5	17.5
3.4	4.5	5.5	5.5	6.6	6.6	6.6	6.6	9	9	13.5	13.5	17.5	17.5
6	8	10	10	11	11	11	11	15	15	20	20	26	26
/	/	/	/	/	/	/	/	/	/	16	16	18	18
8	10	12	14	(16)	18	(20)	22	(24)	28	36	42	48	54
8	10	12	14	16	18	20	22	24	28	36	42	48	54
8.015	10.015	12.018	14.018	16.018	18.018	20.021	22.021	24.021	28.021	36.025	42.025	48.025	54.03
8	10	12	14	16	18	20	22	24	28	36	42	48	54
8.0045	10.0045	12.0055	14.0055	16.0055	18.0055	20.0065	22.0065	24.0065	28.0065	36.008	42.008	48.008	54.0095
7.9955	9.9955	11.9945	13.9945	15.9945	17.9945	19.9935	21.9935	23.9935	27.9935	35.992	41.992	47.992	53.9905
4	4	4	4	5	6	6	6	7	8	10	12	14	16
8	8	10	10	13	13	13	13	15	15	18	18	22	22
M3×10	M4×10	M5×12	M5×12	M6×16	M6×16	M6×16	M6×16	M8×20	M8×20	M12×25	M12×30	M16×35	M16×40

①,括号内尺寸盡量不采用。
②,材料：45鋼按GB 699的規定；熱處理：40~45HRC；其他技術條件按GB/T 2259的規定。
