首頁 產品與标準 JIS B 1115 (AT1) - 1996 開槽盤頭自攻釘 [附表1]

開槽盤頭自攻釘 [附表1] JIS B 1115 (AT1) - 1996

選擇規格尺寸 點擊↓

2

2.5

3

3.5

4

4.5

5

6

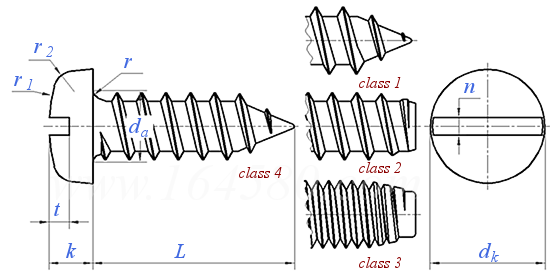

JIS B 1115 (AT1) - 1996 開槽盤頭自攻釘 [附表1]

尺寸單位: mm
日标JIS B1115 (AT1) - 1996 JIS1115 1115JIS 開槽盤頭自攻釘 [附表1]
JIS B 1115 (AT1) - 1996 開槽盤頭自攻釘 [附表1]
掃一掃分享
單重計算 公差
螺紋規格
2 2.5 3 3.5 4 4.5 5 6
dk 最大值=公稱
最小值
k 公稱
最大值
最小值
r1 ≈
r2 ≈
n 最小值=公稱
最大值
t 公稱
最大值
最小值
r 最大值
3.5 4.5 5.5 6 7 8 9 10.5
3.1 4.1 5 5.5 6.5 7.4 8.4 9.8
1.3 1.7 2 2.3 2.6 2.9 3.3 3.9
1.4 1.8 2.15 2.45 2.75 3.05 3.45 4.1
1.2 1.6 1.85 2.15 2.45 2.75 3.15 3.7
4.5 6 7 8 9 11 12 14
0.7 0.9 1.1 1.3 1.5 1.7 1.9 2.3
0.56 0.66 0.86 0.86 1.06 1.06 1.26 1.66
0.7 0.8 1 1 1.2 1.2 1.46 1.86
0.7 0.9 1.1 1.25 1.4 1.6 1.8 2.1
0.8 1.05 1.25 1.45 1.6 1.85 2.1 2.4
0.6 0.75 0.95 1.05 1.2 1.35 1.5 1.8
0.3 0.3 0.4 0.4 0.5 0.5 0.6 0.7
替代列表
JIS B 1115AT1 - 1996 JIS B 1115JA3 - 2015

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
注：技術數據僅供參考，請以官方原件為準！
