十字槽半沉頭螺釘 NF E 25-120 - 1994

選擇規格尺寸 點擊↓

M1.6

M2

M2.5

M3

M3.5

M4

M5

M6

M8

M10

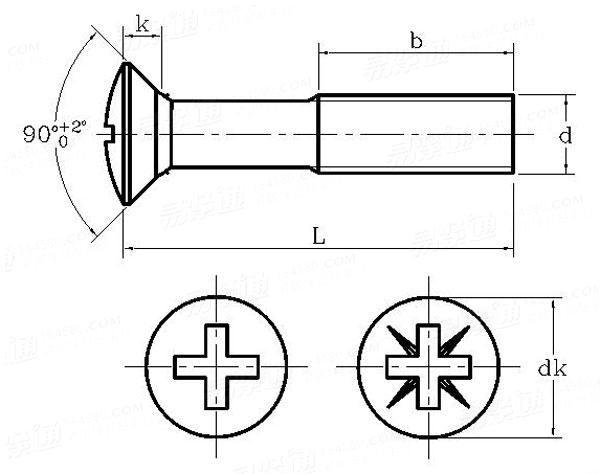

NF E 25-120 - 1994 十字槽半沉頭螺釘

尺寸單位: mm
法國NF E25-120 - 1994 NF25-120 25-120NF 十字槽半沉頭螺釘
法國NF E25-120 - 1994 NF25-120 25-120NF 十字槽半沉頭螺釘
NF E 25-120 - 1994 十字槽半沉頭螺釘
掃一掃分享
單重計算 公差 公制螺紋極限尺寸 米/英制螺紋對照 螺紋直徑與受力截面積 最小破壞扭矩 牌号等級 毛坯直徑
千件重及價格計算 千件重 : kg x 元/kg = 元/千件
默認密度 g/cm3
×

選擇材料對應密度(g/cm3)

  • 碳鋼 7.85
  • 不鏽鋼 8.1
  • 不鏽鋼 7.95
  • 不鏽鋼 7.7
  • 钛合金 4.5
  • 鋁合金 2.8
  • 銅 8.89


在此選擇或在計算頁輸入材料密度 密度表
公稱長度L 注:選擇後獲得 相應重量
螺紋規格
d
M1.6 M2 M2.5 M3 M3.5 M4 M5 M6 M8 M10
P 螺距
b 最小值
dk 最大值
最小值
k 最大值
槽号
0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
25 25 25 25 38 38 38 38 38 38
3.0 3.8 4.7 5.5 7.30 8.40 9.30 11.30 15.80 18.30
2.7 3.5 4.4 5.2 6.94 8.04 8.94 10.87 15.37 17.78
1 1.2 1.5 1.65 2.35 2.7 2.7 3.3 4.65 5
0 0 1 1 2 2 2 3 4 4
千件鋼制重≈kg
- - - - - - - - - -

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 3106 - 2016
緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)
GB /T 3 - 1997
普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)
GB /T 5779.1 - 2000
緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求
GB /T 5779.3 - 2000
緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求
GB /T 3103.1 - 2002
緊固件公差（螺栓、螺柱、螺釘和螺母）
GB /T 34632 - 2017
統一螺紋搓制和滾制前的毛坯直徑
GB /T 18685 - 2017
普通螺紋搓制和滾制前的毛坯直徑
GB /T 3105 - 2002
普通螺栓和螺釘 - 頭下圓角半徑
GB /T 5279.2 - 1997
沉頭螺釘 第2部分 十字槽插入深度
GB /T 197 - 2018
普通螺紋 公差
注：技術數據僅供參考，請以官方原件為準！
