粗牙十字槽半沉頭細杆螺釘 DIN 6929 (NE) - 2013

選擇規格尺寸 點擊↓

M3

M4

M5

M6

M8

M10

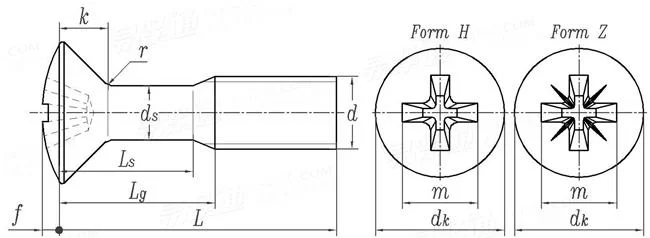

DIN 6929 (NE) - 2013 粗牙十字槽半沉頭細杆螺釘

尺寸單位: mm
德标DIN 6929 (NE) - 2013 DIN6929 6929DIN 粗牙十字槽半沉頭細杆螺釘
DIN 6929 (NE) - 2013 粗牙十字槽半沉頭細杆螺釘
掃一掃分享
單重計算 公差 公制螺紋極限尺寸 米/英制螺紋對照 螺紋直徑與受力截面積 最小破壞扭矩 牌号等級 毛坯直徑
螺紋尺寸
d
M3 M4 M5 M6 M8 M10
P 螺距
Lg K型 最大值
L型 最大值
Ls K型 最小值
L型 最小值
ds 最大值
最小值
r 最小值
dk 最大值=公稱
最小值
f
k 最大值=公稱
槽号
m H型
深度 H型 最大值
深度 最小值
m Z型
深度 Z型 最大值
深度 最小值
0.5 0.7 0.8 1 1.25 1.5
5 6.8 8.2 10 13 16
11.5 15.5 18.8 23 26.5 32.5
4 5.4 6.6 8 10.5 13
10 13.4 16.4 20 22.5 28
2.3 3 3.9 4.6 6.2 7.7
2.1 2.8 3.7 4.4 6 7.5
0.1 0.2 0.2 0.25 0.4 0.4
5.5 8.4 9.3 11.3 15.8 18.3
5.2 8.04 8.94 10.87 15.37 17.78
0.7 1 1.2 1.4 2 2.3
1.65 2.7 2.7 3.3 4.65 5
1 2 2 3 4 4
3.4 5.2 5.4 7.3 9.6 10.4
2.2 3.2 3.4 4 5.25 6
1.8 2.7 2.9 3.5 4.75 5.5
3.1 5 5.3 7.1 9.5 10.3
2.08 3.1 3.35 3.85 5.2 6.05
1.83 2.65 2.9 3.4 4.75 5.6

引用參考

GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 3106 - 2016
緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)
GB /T 3 - 1997
普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)
GB /T 5779.1 - 2000
緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求
GB /T 5779.3 - 2000
緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求
GB /T 3103.1 - 2002
緊固件公差（螺栓、螺柱、螺釘和螺母）
GB /T 34632 - 2017
統一螺紋搓制和滾制前的毛坯直徑
GB /T 18685 - 2017
普通螺紋搓制和滾制前的毛坯直徑
GB /T 3105 - 2002
普通螺栓和螺釘 - 頭下圓角半徑
GB /T 5279.2 - 1997
沉頭螺釘 第2部分 十字槽插入深度
GB /T 197 - 2018
普通螺紋 公差
注：技術數據僅供參考，請以官方原件為準！
