首頁 產品與标準 AS /NZS 1427 - 1996 米制十字槽半沉頭螺釘 [Table 2]

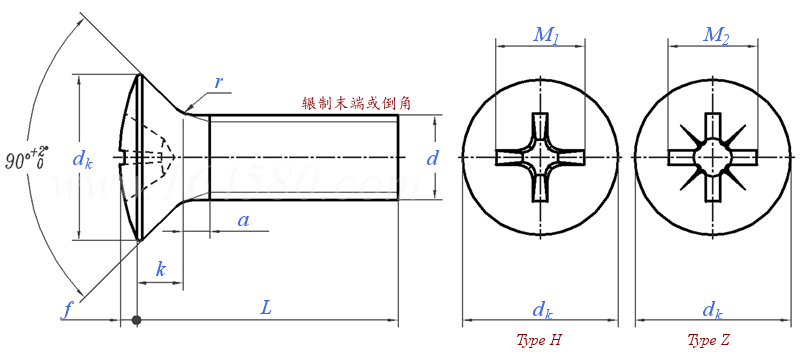

米制十字槽半沉頭螺釘 [Table 2] AS /NZS 1427 - 1996

選擇規格尺寸 點擊↓

M2

M2.5

M3

(M3.5)

M4

M5

M6

M8

M10

括号内尺寸為非優選
AS /NZS 1427 - 1996 米制十字槽半沉頭螺釘 [Table 2]

尺寸單位: mm
澳标AS /NZS1427 - 1996 AS1427 1427AS 米制十字槽半沉頭螺釘 [Table 2]
AS /NZS 1427 - 1996 米制十字槽半沉頭螺釘 [Table 2]
掃一掃分享
單重計算 公差 公制螺紋極限尺寸 米/英制螺紋對照 螺紋直徑與受力截面積 最小破壞扭矩 牌号等級 毛坯直徑
螺紋規格
d
M2 M2.5 M3 (M3.5) M4 M5 M6 M8 M10
P 螺距
dk 最大值
最小值
k 最大值
最小值
r 最大值
a 最大值
f 公稱
槽号
M1 H型
深度 H型 最大值
最小值
M2 Z型
深度 Z型 最大值
最小值
0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5
3.8 4.7 5.5 7.3 8.4 9.3 11.3 15.8 18.3
3.5 4.4 5.2 6.94 8.04 8.94 10.87 15.37 17.78
1.2 1.5 1.65 2.35 2.7 2.7 3.3 4.65 5
1.02 1.3 1.43 1.69 1.94 2.2 2.66 3.58 4.5
0.5 0.6 0.8 0.9 1 1.3 1.5 2 2.5
0.8 0.9 1 1.2 1.4 1.6 2 2.5 3
0.5 0.6 0.7 0.8 1 1.2 1.4 2 2.3
0 1 1 2 2 2 3 4 4
2 3 3.4 4.8 5.2 5.4 7.3 9.6 10.4
1.5 1.85 2.2 2.75 3.2 3.4 4 5.25 6
1.2 1.5 1.8 2.25 2.7 2.9 3.5 4.75 5.5
2.2 2.8 3.1 4.6 5 5.3 7.1 9.5 10.3
1.4 1.75 2.08 2.7 3.1 3.35 3.85 5.2 6.05
1.15 1.5 1.83 2.25 2.65 2.9 3.4 4.75 5.6
