塑料全螺紋六角頭螺釘 DIN 34810 - 1999

選擇規格尺寸 點擊↓

M3

M4

M5

M6

M8

M10

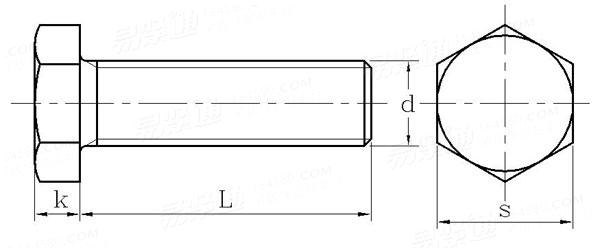

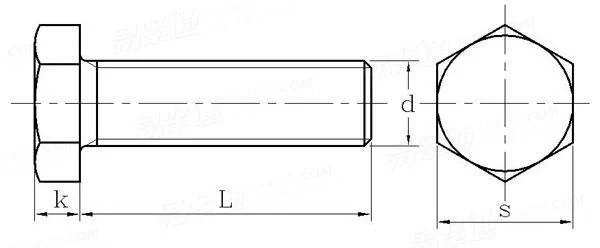

DIN  34810 - 1999 塑料全螺紋六角頭螺釘

尺寸單位: mm
德标DIN 34810 - 1999 DIN34810 34810DIN 塑料全螺紋六角頭螺釘
DIN  34810 - 1999 塑料全螺紋六角頭螺釘
掃一掃分享
螺紋規格
d
M3 M4 M5 M6 M8 M10
P 螺距
k 公稱
s 最大值=公稱
0.50 0.70 0.80 1.00 1.25 1.5
2 2.8 3.5 4 5.3 6.4
5.5 7 8 10 13 16
替代列表
注:技術數據僅供參考,請以官方原件為準!
