钛合金六角頭全螺紋螺栓 QJ 2581 (A) - 2011

選擇規格尺寸點擊↓

M10

M12 ×1.5

尺寸單位: mm

航天QJ 2581 (A) - 2011 QJ2581 2581QJ 钛合金六角頭全螺紋螺栓

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱長度L 注:選擇後獲得 相應重量

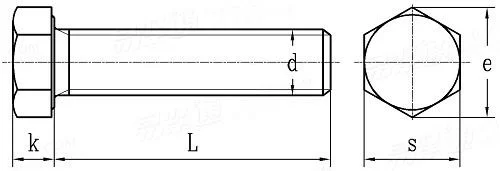

螺紋尺寸
d

M10

M12
×1.5

e	最小值
k	公稱
	最大值
	最小值
s	最大值
s	最小值

7.66	8.79	11.05	14.38	17.77	20.03
2.8	3.5	4	5.3	6.4	7.5
2.92	3.65	4.15	5.45	6.58	7.68
2.68	3.35	3.85	5.15	6.22	7.32
7	8	10	13	16	18
6.78	7.78	9.78	12.73	15.73	17.73

千件鋼制重≈kg

TB3螺栓

①,材料：TB3 ——熱處理（固溶+時效 1100~1250MPa），表面處理（脈沖陽極氧化）；TC4 ——熱處理（固溶+時效 ≥1100MPa），表面處理（脈沖陽極氧化）；TC16 ——熱處理（固溶+時效 1030~1180MPa），表面處理（脈沖陽極氧化）
②,其他要求按 QJ 2585A-2011 的規定。

替代列表

QJ 2581 - 1993 QJ 2581A - 2011

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金屬熱處理工藝分類及代号

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求

注：技術數據僅供參考，請以官方原件為準！
