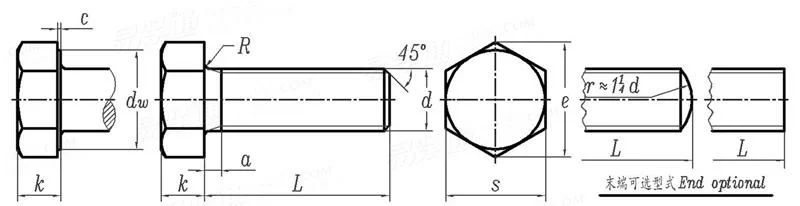

六角頭粗制螺釘 [Table 5] BS 4190 - 2014

選擇規格尺寸點擊↓

M10

M12

M16

M20

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

(M45)

M48

(M52)

M56

(M60)

M64

(M68)

括号内尺寸為非優選

尺寸單位: mm

英标BS 4190 - 2014 BS4190 4190BS 六角頭粗制螺釘 [Table 5]

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照螺紋直徑與受力截面積最小破壞扭矩牌号等級毛坯直徑

螺紋尺寸
d

M10

M12

M16

M20

(M22)

M24

(M27)

M30

P	螺距
d	最大值
d	最小值
s	最大值
s	最小值
e	最大值
e	最小值
k	最大值
k	最小值
R	最大值
d_w	最小值
c	最大值
a	最大值

0.8	1	1.25	1.5	1.75	2	2.5	2.5	3	3	3.5
5.48	6.48	8.58	10.58	12.7	16.7	20.84	22.84	24.84	27.84	30.84
4.52	5.52	7.42	9.42	11.3	15.3	19.16	21.16	23.16	26.16	29.16
8	10	13	17	19	24	30	32	36	41	46
7.64	9.64	12.57	16.57	18.48	23.16	29.16	31	35	40	45
9.2	11.5	15	19.6	21.9	27.7	34.6	36.9	41.6	47.3	53.1
8.63	10.89	14.2	18.72	20.88	26.17	32.95	35.03	39.55	45.2	50.85
3.88	4.38	5.88	7.45	8.45	10.45	13.9	14.9	15.9	17.9	20.05
3.13	3.63	5.13	6.55	7.55	9.55	12.1	13.1	14.1	16.1	17.95
0.35	0.4	0.8	0.8	1.25	1.25	1.78	1.78	1.78	2.28	2.28
6.8	8.7	11.5	15.5	17.2	22	27.7	-	33.2	-	42.7
0.5	0.5	0.6	0.6	0.6	0.8	0.8	-	0.8	-	0.8
2	2.5	3	3.5	4	5	6	6	7	7	8

螺紋尺寸
d

(M33)

M36

(M39)

M42

(M45)

M48

(M52)

M56

(M60)

M64

(M68)

P	螺距
d	最大值
d	最小值
s	最大值
s	最小值
e	最大值
e	最小值
k	最大值
k	最小值
R	最大值
d_w	最小值
c	最大值
a	最大值

3.5	4	4	4.5	4.5	5	5	5.5	5.5	6	6
34	37	40	43	46	49	53.2	57.2	61.2	65.2	69.2
32	35	38	41	44	47	50.8	54.8	58.8	62.8	66.8
50	55	60	65	70	75	80	85	90	95	100
49	53.8	58.8	63.8	68.8	73.8	78.8	83.6	88.6	93.6	98.6
57.7	63.5	69.3	75.1	80.8	86.6	92.4	98.1	103.9	109.7	115.5
55.37	60.79	66.44	72.09	77.74	83.39	89.04	94.47	100.12	105.77	111.42
22.05	24.05	26.05	27.05	29.05	31.05	34.25	36.25	39.25	41.25	44.25
19.95	21.95	23.95	24.95	26.95	28.95	31.75	33.75	36.75	38.75	41.75
2.28	2.7	2.7	2.8	3.3	3.8	4.7	4.9	4.9	4.9	4.9
-	51.1	-	60.8	-	70.8	-	-	-	-	-
-	0.8	-	1	-	1	-	-	-	-	-
8	10	10	11	11	12	12	19	19	21	21

替代列表

BS 4190 - 2001 BS 4190 - 2014

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3106 - 2016

緊固件 - 螺栓、螺釘和螺柱 - 公稱長度和螺紋長度 (ISO 888:2012, MOD)

GB /T 12603 - 2005

金屬熱處理工藝分類及代号

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 5779.1 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 一般要求

GB /T 5779.3 - 2000

緊固件表面缺陷 - 螺栓、螺釘和螺柱 - 特殊要求

注：技術數據僅供參考，請以官方原件為準！
