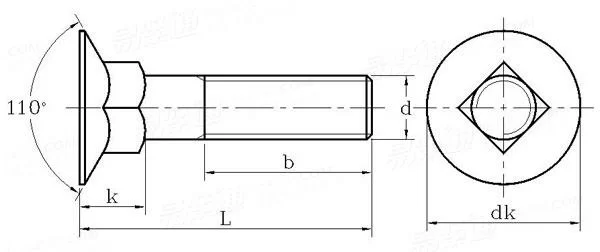

110°沉頭方頸螺栓Table6 BS 325 - 1947

選擇規格尺寸 點擊↓

1/4

5/16

3/8

7/16

1/2

5/8

3/4

7/8

1

BS  325 - 1947 110°沉頭方頸螺栓Table6

尺寸單位: inch
英标BS 325 - 1947 BS325 325BS 110°沉頭方頸螺栓Table6
BS  325 - 1947 110°沉頭方頸螺栓Table6
掃一掃分享
公稱直徑
d
1/4 5/16 3/8 7/16 1/2 5/8 3/4 7/8 1
PP BSW
dk
k
20 18 16 14 12 11 10 9 8
0.625 0.781 0.938 1.094 1.25 1.562 1.875 2.188 2.5
0.35 0.429 0.509 0.589 0.699 0.859 1.018 1.209 1.369
注:技術數據僅供參考,請以官方原件為準!
