粗制沉頭方頸螺栓Table5 BS 325 - 1947

選擇規格尺寸 點擊↓

3/8

7/16

1/2

5/8

3/4

7/8

1

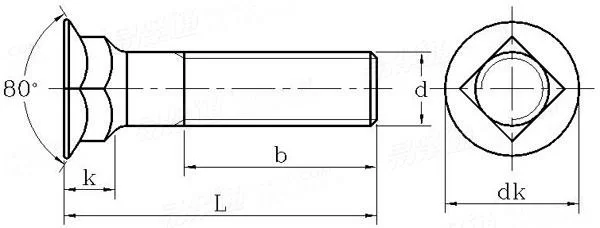

BS  325 - 1947 粗制沉頭方頸螺栓Table5

尺寸單位: inch
英标BS 325 - 1947 BS325 325BS 粗制沉頭方頸螺栓Table5
BS  325 - 1947 粗制沉頭方頸螺栓Table5
掃一掃分享
公稱直徑
d
3/8 7/16 1/2 5/8 3/4 7/8 1
PP BSW
dk
k
16 14 12 11 10 9 8
0.69 0.805 0.92 1.149 1.379 1.609 1.839
0.313 0.375 0.422 0.515 0.625 0.719 0.812
注:技術數據僅供參考,請以官方原件為準!
