十字槽半沉頭自攻釘 JIS B 1122 (T9) - 2015

選擇規格尺寸 點擊↓

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

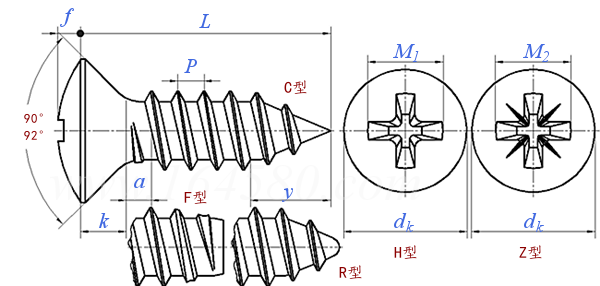

JIS B 1122 (T9) - 2015 十字槽半沉頭自攻釘

尺寸單位: mm
日标JIS B1122 (T9) - 2015 JIS1122 1122JIS 十字槽半沉頭自攻釘
JIS B 1122 (T9) - 2015 十字槽半沉頭自攻釘
掃一掃分享
單重計算 公差
螺紋尺寸
d
ST2.2 ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
a 最大值
dk 公稱
最大值
最小值
f ≈
k 最大值
槽号
M1 H型 參考值
深度 H型 最大值
最小值
M2 Z型 參考值
深度 Z型 最大值
最小值
y 參考 C型
F型
R型
0.8 1.1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
1.6 2.2 2.6 2.8 3.2 3.6 3.6 4.2 4.2
4.4 6.3 8.2 9.4 10.4 11.5 12.6 17.3 20
3.8 5.5 7.3 8.4 9.3 10.3 11.3 15.8 18.3
3.5 5.2 6.9 8 8.9 9.9 10.9 15.4 17.8
0.5 0.7 0.8 1 1.2 1.3 1.4 2 2.3
1.1 1.7 2.35 2.6 2.8 3 3.15 4.65 5.25
0 1 2 2 2 3 3 4 4
1.9 3.2 4.4 4.6 5.2 6.6 6.8 8.9 10
1.2 2.1 2.4 2.6 3.2 3.3 3.5 4.6 5.7
0.9 1.7 1.9 2.1 2.7 2.8 3 4 5.1
2 3 4.1 4.4 4.9 6.3 6.6 8.8 9.8
1.2 2.01 2.2 2.51 3.05 3.18 3.45 4.6 5.64
0.95 1.76 1.75 2.06 2.6 2.73 3 4.15 5.19
2 2.6 3.2 3.7 4.3 5 6 7.5 8
1.6 2.1 2.5 2.8 3.2 3.6 3.6 4.2 4.2
/ / 2.7 3.2 3.6 4.3 5 6.3 /
替代列表
JIS B 1122AT3 - 1996 JIS B 1122T9 - 2015

同版本產品組

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
