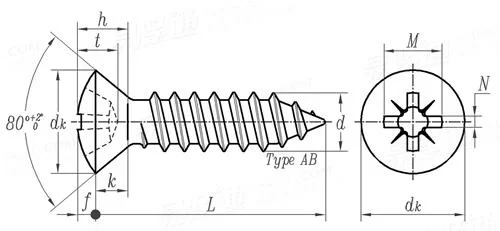

IA型米字槽半沉頭自攻螺釘 AB型 [Table 22] ASME B 18.6.4 - 1998 (R2005)

選擇規格尺寸 點擊↓

0#

1#

2#

3#

4#

5#

6#

7#

8#

10#

12#

1/4

5/16

ASME B 18.6.4 - 1998 (R2005) IA型米字槽半沉頭自攻螺釘 AB型 [Table 22]

尺寸單位: inch
美标ASME B18.6.4 - 1998 (R2005) ASME18.6.4 IA型米字槽半沉頭自攻螺釘 AB型 [Table 22]
ASME B 18.6.4 - 1998 (R2005) IA型米字槽半沉頭自攻螺釘 AB型 [Table 22]
掃一掃分享
公差 美制螺紋極限尺寸 米/英制螺紋對照 螺紋直徑與受力截面積
公稱直徑
d
0# 1# 2# 3# 4# 5# 6# 7# 8# 10# 12# 1/4 5/16
d 公稱直徑
L 最小值
dk 最大值
最小值
k 參考值
f 參考值
h 參考值
M 參考值
t 參考值
N 參考值
槽号
深度 最大值
最小值
0.0600 0.0730 0.0860 0.0990 0.1120 0.1250 0.1380 0.1510 0.1640 0.1900 0.2160 0.2500 0.3125
3/16 3/16 3/16 7/32 1/4 1/4 5/16 3/8 7/16 1/2 9/16 5/8 13/16
0.112 0.137 0.162 0.187 0.212 0.237 0.262 0.287 0.312 0.362 0.412 0.477 0.597
0.096 0.120 0.144 0.167 0.191 0.215 0.238 0.262 0.285 0.333 0.380 0.442 0.556
0.035 0.043 0.051 0.059 0.067 0.075 0.083 0.091 0.100 0.116 0.132 0.153 0.191
0.021 0.025 0.029 0.033 0.037 0.041 0.045 0.049 0.052 0.060 0.068 0.079 0.099
0.056 0.068 0.080 0.092 0.104 0.116 0.128 0.140 0.152 0.176 0.200 0.232 0.290
0.068 0.070 0.106 0.118 0.130 0.152 0.172 0.176 0.186 0.202 0.264 0.284 0.384
0.040 0.043 0.065 0.077 0.089 0.080 0.100 0.105 0.115 0.132 0.148 0.168 0.232
0.018 0.018 0.029 0.030 0.030 0.041 0.041 0.041 0.041 0.041 0.056 0.057 0.086
0 0 1 1 1 2 2 2 2 2 3 3 4
0.042 0.043 0.062 0.074 0.086 0.074 0.093 0.099 0.108 0.125 0.135 0.155 0.215
0.024 0.027 0.046 0.058 0.070 0.056 0.075 0.081 0.090 0.107 0.117 0.137 0.197
