梅花槽大六角頭自攻螺釘-B牙,BP牙 ASME B 18.6.3 (H9B[L]-VI+T1B) - 2024

選擇規格尺寸點擊↓

12#

1/4

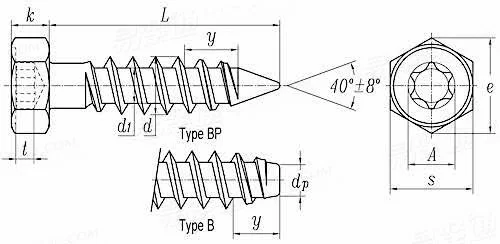

ASME B 18.6.3 (H9B[L]-VI+T1B) - 2024 梅花槽大六角頭自攻螺釘-B牙,BP牙

尺寸單位: inch

美标ASME B18.6.3 (H9B[L]-VI+T1B) - 2024 AS 梅花槽大六角頭自攻螺釘-B牙,BP牙

掃一掃分享

公差最小破壞扭矩牌号等級

螺紋規格

12#

1/4

PP
d	最大值
	最小值
d₁	最大值
	最小值
s	最大值
	最小值
e	最小值
k	最大值
	最小值
d_p	參考值
y	最大值
	最小值
槽号
A	參考值
t	最大值
	最小值

24	20	18	14	14
0.114	0.130	0.166	0.215	0.246
0.108	0.123	0.159	0.208	0.237
0.086	0.094	0.122	0.164	0.192
0.082	0.090	0.116	0.157	0.185
0.219	0.250	0.312	0.375	0.438
0.213	0.244	0.305	0.367	0.428
0.238	0.272	0.340	0.409	0.477
0.060	0.070	0.110	0.155	0.190
0.049	0.058	0.096	0.139	0.172
0.079	0.087	0.112	0.152	0.179
0.083	0.100	0.111	0.143	0.143
0.063	0.075	0.083	0.107	0.107
T10	T10	T20	T27	T30
0.111	0.111	0.155	0.200	0.221
0.040	0.050	0.065	0.080	0.095
0.035	0.040	0.050	0.065	0.080
