六角頭自攻螺釘 UNI 6949 - 1980

選擇規格尺寸 點擊↓

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

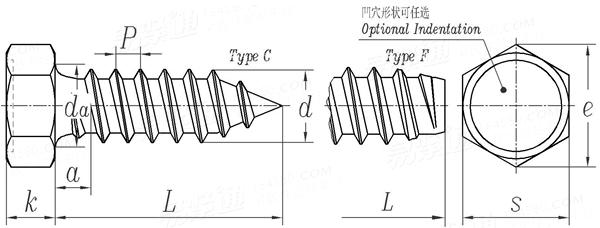

UNI  6949 - 1980 六角頭自攻螺釘

尺寸單位: mm
意大利UNI 6949 - 1980 UNI6949 6949UNI 六角頭自攻螺釘
UNI  6949 - 1980 六角頭自攻螺釘
掃一掃分享
螺紋尺寸
d
ST2.2 ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
a 最大值
da 最大值
s 最大值
最小值
e 最小值
k 最大值
最小值
0.8 1.1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
0.8 1.1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
2.8 3.5 4.1 4.9 5.5 6.3 7.1 9.2 10.7
3.2 5 5.5 7 8 8 10 13 16
3.02 4.82 5.32 6.78 7.78 7.78 9.78 12.73 15.73
3.38 5.4 5.96 7.59 8.71 8.71 10.95 14.26 17.62
1.6 2.3 2.6 3 3.8 4.1 4.7 6 7.5
1.3 2 2.3 2.6 3.3 3.6 4.1 5.2 6.5
注:技術數據僅供參考,請以官方原件為準!
