帶孔銷軸 GOST 9650 (Type 6) - 1980

選擇規格尺寸 點擊↓

3

4

5

6

8

10

12

14

16

18

20

22

24

(25)

(28)

30

(32)

33

36

40

45

50

55

60

70

80

90

100

括号内尺寸為非優選

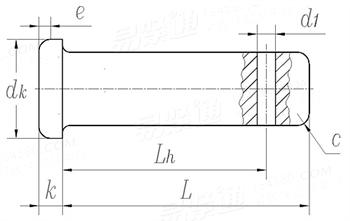

GOST  9650 (Type 6) - 1980 帶孔銷軸

尺寸單位: mm
俄标GOST 9650 (Type 6) - 1980 GOST9650 965 帶孔銷軸
GOST  9650 (Type 6) - 1980 帶孔銷軸
掃一掃分享
公稱長度L
公稱直徑
d
3 4 5 6 8 10 12 14 16 18 20 22 24 (25)
dk 标準
加大
k 标準
加大
d1
e
c
5 6 8 10 12 14 16 18 20 22 25 28 30 32
/ 7 / / 14 18 20 22 25 28 30 33 36 38
/ 1 1.6 2 2 2.5 2.5 3 3 3 4 4 4 5
/ 1.5 / / 3 4 4 4 4.5 5 5 5.5 6 6
0.8 1 1.2 1.6 2 3.2 3.2 4 4 5 5 5 6.3 6.3
0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 1 1 1 1
0.6 0.6 0.6 0.6 0.6 1 1 1.6 1.6 1.6 1.6 1.6 1.6 1.6
Lh
- - - - - - - - - - - - - -
公稱直徑
d
(28) 30 (32) 33 36 40 45 50 55 60 70 80 90 100
dk 标準
加大
k 标準
加大
d1
e
c
36 38 40 40 45 50 55 60 65 70 80 90 100 110
40 44 45 47 50 55 60 66 72 78 90 100 110 120
5 5 6 6 6 6 7 7 8 8 10 10 12 12
6 8 8 8 8 8 9 9 11 12 13 13 13 13
6.3 8 8 8 8 8 10 10 10 10 13 13 13 13
1 1 1.6 1.6 1.6 1.6 2.5 2.5 2.5 2.5 2.5 4 4 4
1.6 1.6 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 4 4
Lh
- - - - - - - - - - - - - -
①,允許将銷軸頭部和端部做成圓角,尺寸等于倒角尺寸e和c。
注:技術數據僅供參考,請以官方原件為準!
