十字槽六角頭以及大六角頭螺釘 [TABLE 2.2.9-3] ASME B 18.6.3 (H9C) - 2024
| 選擇規格尺寸 點擊↓ 8# 10# 12# 1/4 5/16 3/8 |
尺寸單位:
inch |
|

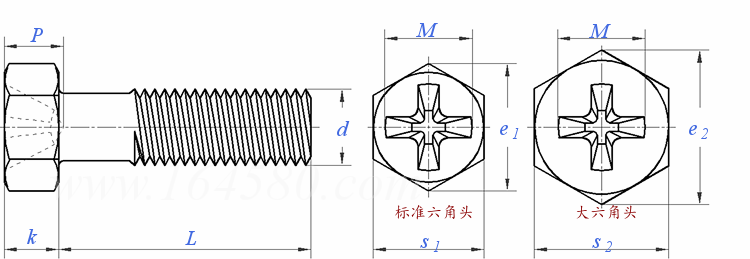

![ASME B 18.6.3 (H9C) - 2024 十字槽六角頭以及大六角頭螺釘 [TABLE 2.2.9-3]](https://img.164580.com/upload/48/pic_cadpara/1490_zh.png?ue=1734864155&local=cache&tp=canvas&pict=png)
![美标ASME B18.6.3 (H9C) - 2024 ASME18.6.3 1 十字槽六角頭以及大六角頭螺釘 [TABLE 2.2.9-3]](https://img.164580.com/upload/48/pic/2023/11/17/1700207519013568189.jpg)
![ASME B 18.6.3 (H9C) - 2024 十字槽六角頭以及大六角頭螺釘 [TABLE 2.2.9-3]](https://img.164580.com/upload/48/qrcode_standardurl/24958.png)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①,若以小數規定公稱直徑，應略去小數點前面的零和第四位小數零。 ②,凹穴六角頭允許所有邊緣和棱角略有圓鈍，但支承面圓周直徑應不小于最小對邊寬度的90%。 |
長度公差
Machine screws can be made to any length, but they are generally produced in fractional length increments of 1/16 in. for screws up to 5/8 in. long, 1/8 in. for screws over 5/8 in. through 1-1/2 in. long, and 1/4 in. for screws over 1-1/2 in. long.
标稱螺釘尺寸的長度公差 | |||
标稱螺釘長度 | 螺紋規格 | ||
0000~00 | 0~12 | 1/4~3/4 | |
≤1/2 | -0.01 | -0.02 | -0.03 |
＞1/2,≤1 | -0.02 | -0.03 | -0.03 |
＞1,≤2 | / | -0.06 | -0.06 |
＞2 | / | -0.09 | -0.09 |
注：技術數據僅供參考，請以官方原件為準！
