十字槽凹穴六角頭以及大六角頭螺釘 [TABLE 2.2.9-2 I] ASME B 18.6.3 (H9B-I) - 2024
| 選擇規格尺寸 點擊↓ 1# 2# 3# 4# 5# 6# 8# 10# 12# 1/4 5/16 3/8 |
尺寸單位:
inch |
|

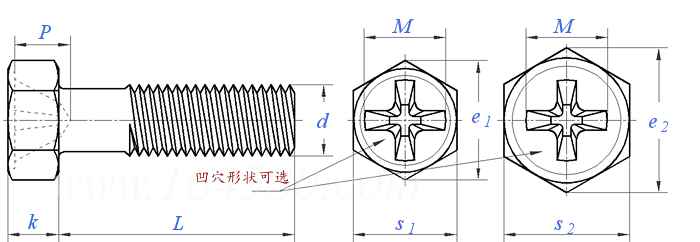

![ASME B 18.6.3 (H9B-I) - 2024 十字槽凹穴六角頭以及大六角頭螺釘 [TABLE 2.2.9-2 I]](https://img.164580.com/upload/48/pic_cadpara/1488_zh.png?ue=1734861426&local=cache&tp=canvas&pict=png)
![美标ASME B18.6.3 (H9B-I) - 2024 ASME18.6.3 十字槽凹穴六角頭以及大六角頭螺釘 [TABLE 2.2.9-2 I]](https://img.164580.com/upload/48/pic/2023/07/31/1690784879920738154.jpg)
![ASME B 18.6.3 (H9B-I) - 2024 十字槽凹穴六角頭以及大六角頭螺釘 [TABLE 2.2.9-2 I]](https://img.164580.com/upload/48/qrcode_standardurl/24955.png)
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| ①,凹穴六角頭允許所有邊緣和棱角略有圓鈍，但支承面圓周直徑應不小于最小對邊寬度的90%。 ②,若以小數規定公稱直徑，應略去小數點前面的零和第四位小數零。 |
長度公差
Machine screws can be made to any length, but they are generally produced in fractional length increments of 1/16 in. for screws up to 5/8 in. long, 1/8 in. for screws over 5/8 in. through 1-1/2 in. long, and 1/4 in. for screws over 1-1/2 in. long.
标稱螺釘尺寸的長度公差 | |||
标稱螺釘長度 | 螺紋規格 | ||
0000~00 | 0~12 | 1/4~3/4 | |
≤1/2 | -0.01 | -0.02 | -0.03 |
＞1/2,≤1 | -0.02 | -0.03 | -0.03 |
＞1,≤2 | / | -0.06 | -0.06 |
＞2 | / | -0.09 | -0.09 |
類似标準及供貨信息
| 1 |
|
[國标] GB /T 29.2 - 2013 |
六角頭帶十字槽螺栓 Hexagon Bolts With Cross Recess On Head 供應商(4) |
| 2 |
|
[汽标代号] Q 174 |
十字槽六角頭螺栓 Cross recessed hexagon head bolts 供應商(2) |
| 3 |
|
[汽标代号] Q 174B |
十字槽凹穴六角頭螺栓 Cross recessed hexagon bolts with indentation 供應商(2) |
| 4 |
![十字槽六角頭以及大六角頭螺釘 [TABLE 2.2.9-3]](http://img.164580.com/upload/48/pic/2023/11/17/1700207519278419935.jpg)
|
[美标] ASME B 18.6.3 (H9C) - 2024 |
十字槽六角頭以及大六角頭螺釘 [TABLE 2.2.9-3] Type I Nonindented Regular and Large Hex Head Screws [TABLE 2.2.9-3] |
| 5 |
|
[美标] ASME B 18.6.3 (T30-I) - 2013 |
十字槽凹穴六角頭以及大六角頭螺釘 Cross Recess Indented Regular and Large Hex Head Screws |
| 6 |
|
[美标] ASME B 18.6.3 (T31-I) - 2013 |
十字槽六角頭以及大六角頭螺釘 Recess Dimensions for Type I Nonindented Regular and Large Hex Head Screws |
