大鉚釘 - 半沉頭實心鉚釘 [Table 5] (A31, A131, A152, A502) ANSI B 18.1.2 (T5) - 1972 (R2016)

選擇規格尺寸點擊↓

1/2

5/8

3/4

7/8

1

1-1/8

1-1/4

1-3/8

1-1/2

1-5/8

1-3/4

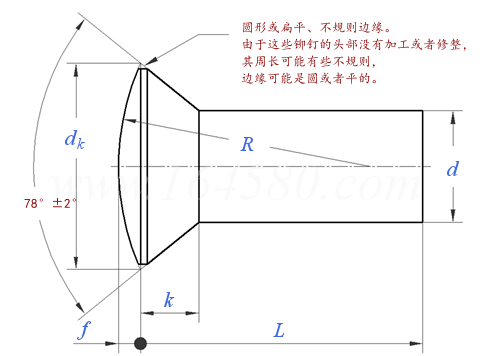

ANSI B 18.1.2 (T5) - 1972 (R2016) 大鉚釘 - 半沉頭實心鉚釘 [Table 5] (A31, A131, A152, A502)

尺寸單位: inch

美标ANSI B18.1.2 (T5) - 1972 (R2016) ANSI1 大鉚釘 - 半沉頭實心鉚釘 [Table 5] (A31, A131, A152, A502)

ANSI B 18.1.2 (T5) - 1972 (R2016) 大鉚釘 - 半沉頭實心鉚釘 [Table 5] (A31, A131, A152, A502)

掃一掃分享

單重計算公差

公稱直徑
d

1/2

5/8

3/4

7/8

1

1-1/8

1-1/4

1-3/8

1-1/2

1-5/8

1-3/4

d	最大值
d	最小值
d_k	最大值
d_k	最小值
k	公稱
f	公稱
R	公稱

0.520	0.655	0.780	0.905	1.030	1.160	1.285	1.415	1.540	1.665	1.790
0.478	0.600	0.725	0.850	0.975	1.098	1.223	1.345	1.470	1.588	1.713
0.936	1.194	1.421	1.647	1.873	2.114	2.340	2.567	2.793	3.019	3.262
0.872	1.112	1.322	1.532	1.745	1.973	2.199	2.426	2.652	2.878	3.121
0.260	0.339	0.400	0.460	0.520	0.589	0.650	0.710	0.771	0.831	0.901
0.095	0.119	0.142	0.166	0.190	0.214	0.238	0.261	0.285	0.309	0.332
1.125	1.406	1.688	1.969	2.250	2.531	2.812	3.094	3.375	3.656	3.938

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
