内六角球面端螺釘 JIS B 1177 - 1988

選擇規格尺寸 點擊↓

M3

M4

M5

M6

M8

M10

M12

M16

M20

M24

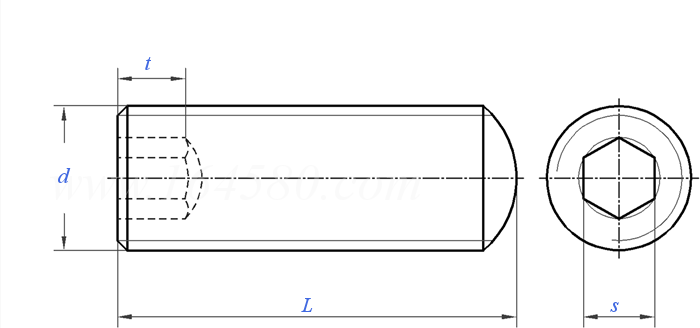

JIS B 1177 - 1988 内六角球面端螺釘

尺寸單位: mm
日标JIS B1177 - 1988 JIS1177 1177JIS 内六角球面端螺釘
JIS B 1177 - 1988 内六角球面端螺釘
掃一掃分享
公稱直徑
d
M3 M4 M5 M6 M8 M10 M12 M16 M20 M24
P 螺距
s 最大值
最小值
t 最小值
0.5 0.7 0.8 1 1.25 1.5 1.75 2 2.5 3
1.545 2.045 2.56 3.08 4.095 5.095 6.095 8.115 10.115 12.142
1.52 2.02 2.52 3.02 4.02 2.02 6.02 8.025 10.025 12.032
1.2 1.5 2 2 3 4 4.8 6.4 8 10
注:技術數據僅供參考,請以官方原件為準!
