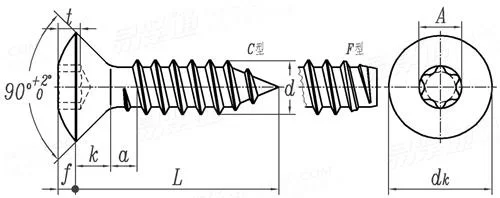

内六角花形半沉頭自攻螺釘 Q 27C

選擇規格尺寸點擊↓

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

尺寸單位: mm

掃一掃分享

單重計算公差

螺紋尺寸
d

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

P	螺距
d_k	理論值	最大值
	實際值	最大值
		最小值
f	≈
k	最大值
槽号
A	參考
t	最大值
	最小值

1.1	1.3	1.4	1.6	1.8	1.8
6.3	8.2	9.4	10.4	11.5	12.6
5.5	7.3	8.4	9.3	10.3	11.3
5.2	6.9	8.0	8.9	9.9	10.9
0.7	0.8	1	1.2	1.3	1.4
1.7	2.35	2.6	2.8	3	3.15
10	15	20	25	25	30
2.8	3.35	3.95	4.5	4.5	5.6
1.27	1.4	1.8	2.03	2.03	2.42
1.01	1.14	1.42	1.65	1.65	2.02

采用标準

技術條件和引用标準

材料

鋼

螺紋
機械性能
公差	產品等級
	标準
内六角花型
表面處理	種類
	标準
驗收及包裝

GB/T 5280

GB/T 3098.5

GB/T 3103.1

GB/T 6188

① 鍍鋅鈍化 Fe/Zn8；② 非電解鋅片塗層

QC/T 625

GB/T 90.1、GB/T 90.2

引用參考

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 5280 - 2002

自攻螺釘用螺紋

注：技術數據僅供參考，請以官方原件為準！
