電纜端部連接用鋼絲繩夾 DIN 741 - 1972

選擇規格尺寸點擊↓

6.5

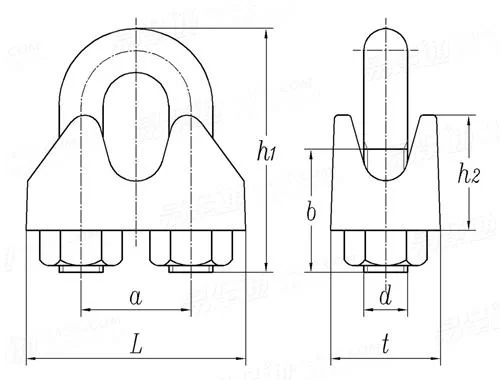

尺寸單位: mm

德标DIN 741 - 1972 DIN741 741DIN 電纜端部連接用鋼絲繩夾

掃一掃分享

公差公制螺紋極限尺寸米/英制螺紋對照

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

規格

6.5

d
a
b
h₁
L
h₂
t
千件重kg

M4	M5	M5	M6	M8	M8	M10	M10	M12	M12	M14	M14	M16	M16	M16
9	11	13	16	19	20	24	25	29	32	37	41	48	52	58
12	13	15	19	22	22	30	30	33	38	44	45	50	55	60
20	24	28	34	42	44	55	57	63	76	85	95	110	120	140
21	23	26	30	34	36	42	44	50	54	61	66	74	80	88
10	10	11	16	17	18	21	22	26	30	34	37	43	50	55
10	11	12	14	18	19	23	23	26	29	33	35	37	42	45
14	15	21	41	65	72	130	135	210	280	400	440	660	850	1040

替代列表

DIN 741 - 1972 DIN 1142 - 1982

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

注：技術數據僅供參考，請以官方原件為準！
