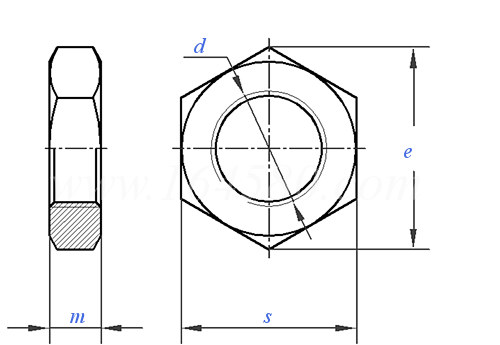

美制六角薄螺母 BS 1768 - 1963

選擇規格尺寸點擊↓

1/4

5/16

3/8

7/16

1/2

(9/16)

5/8

3/4

7/8

1-1/8

1-1/4

(1-3/8)

1-1/2

1-3/4

括号内尺寸為非優選

尺寸單位: 英寸(inch)

掃一掃分享

單重計算公差美制螺紋極限尺寸米/英制螺紋對照

螺紋尺寸
d

1/4

5/16

3/8

7/16

1/2

(9/16)

5/8

3/4

s	最大值
s	最小值
m	最大值
m	最小值
e	最大值

0.4375	0.5	0.5625	0.6875	0.75	0.875	0.9375	1.125
0.4305	0.493	0.5545	0.6795	0.742	0.867	0.9295	1.115
0.161	0.192	0.224	0.255	0.317	0.349	0.380	0.432
0.151	0.182	0.214	0.245	0.307	0.339	0.370	0.412
0.505	0.577	0.650	0.794	0.866	1.010	1.083	1.300

螺紋尺寸
d

7/8

1-1/8

1-1/4

(1-3/8)

1-1/2

1-3/4

s	最大值
s	最小值
m	最大值
m	最小值
e	最大值

1.3125	1.5	1.6875	1.875	2.0625	2.25	2.625	3
1.3005	1.488	1.6575	1.83	2.0175	2.205	2.565	2.94
0.494	0.562	0.629	0.744	0.806	0.874	0.999	1.129
0.474	0.532	0.589	0.694	0.756	0.814	0.939	1.059
1.515	1.732	1.948	2.165	2.382	2.598	3.031	3.464

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3 - 1997

普通螺紋收尾、肩距、退刀槽和倒角 (ISO 3508:1976 / ISO 4755:1983)

GB /T 3103.1 - 2002

緊固件公差（螺栓、螺柱、螺釘和螺母）

GB 3103.2 - 1982

緊固件公差 - 用于精密機械的螺栓、螺釘和螺母

注：技術數據僅供參考，請以官方原件為準！
