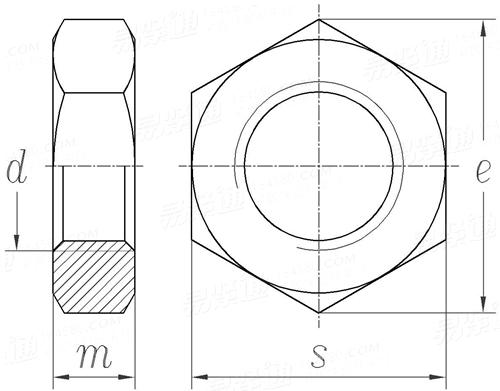

六角薄螺母 GB /T 17116.3 - 2018

選擇規格尺寸點擊↓

M10

M12

M16

M20

M24

M30

M36

M42

M48

M56 ×4

M64 ×4

M68 ×4

M72 ×4

M80 ×4

M90 ×4

M100 ×4

M110 ×4

M125 ×4

尺寸單位: mm

國标GB /T17116.3 - 2018 GB17116.3 17116.3G 六角薄螺母

掃一掃分享

單重計算公差公制螺紋極限尺寸米/英制螺紋對照

螺紋尺寸
d

M10

M12

M16

M20

M24

M30

M36

M42

M48

e	最小值
m	最大值
m	最小值
s	最大值
s	最小值

17.77	20.03	26.75	32.95	39.55	50.85	60.79	71.3	82.6
5	6	8	10	12	15	18	21	24
4.7	5.7	7.42	9.1	10.9	13.9	16.9	19.7	22.7
16	18	24	30	36	46	55	65	75
15.73	17.73	23.67	29.16	35	45	53.8	63.1	73.1

螺紋尺寸
d

M56
×4

M64
×4

M68
×4

M72
×4

M80
×4

M90
×4

M100
×4

M110
×4

M125
×4

e	最小值
m	最大值
m	最小值
s	最大值
s	最小值

93.56	104.86	111.98	116.16	127.46	144.08	161.02	172.32	200.58
28	32	34	36	40	45	50	55	63
26.7	30.4	32.4	34.2	38	42.25	47.5	52.25	59.85
85	95	100	105	115	130	145	155	180
82.8	92.8	99.1	102.8	112.8	127.5	142.5	152.5	177.5
