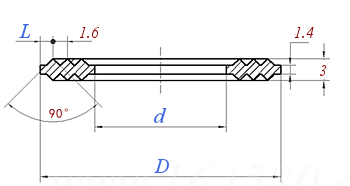

帶齒墊圈 CB /T 316 (08) - 1995

選擇規格尺寸點擊↓

3 類型 I

6 類型 I

8 類型 I

10 類型 I

10 類型 II

15 類型 II

20 類型 II

25 類型 II

32 類型 II

尺寸單位: mm

掃一掃分享

公差

千件重及價格計算千件重 : kg x 元/kg = 元/千件

默認密度 g/cm³

公稱直徑
DN

3
類型 I

6
類型 I

8
類型 I

10
類型 I

10
類型 II

15
類型 II

20
類型 II

25
類型 II

32
類型 II

D
d
L
齒數	單面
單重≈kg

18	23	27	31	21	34	37	47	54
7	11	13	15	11	16	22	27	34
1.4	1.4	1.1	1.6	0.9	2.1	1.2	1.2	1
3	3	4	4	3	4	4	6	6
0.004	0.006	0.01	0.014	0.006	0.011	0.015	0.028	0.034

引用參考

GB /T 1172 - 1999

黑色金屬硬度及強度換算值

GB /T 5267.1 - 2002

鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能

GB /T 193 - 2003

普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)

GB /T 3103.3 - 2020

緊固件公差平墊圈

注：技術數據僅供參考，請以官方原件為準！

告訴我在“易緊通”看到，将給您優惠

邢台市龐氏機械配件有限公司

聯系人：龐明貞

1592208090 移動電話： 13931931225 電話：0319-7894567 微信号：13931931225 Email:

登陸後可見

材質：紫銅、黃銅、磷銅、錫青銅；規格範圍：可按照要求定制。

[詢價]
