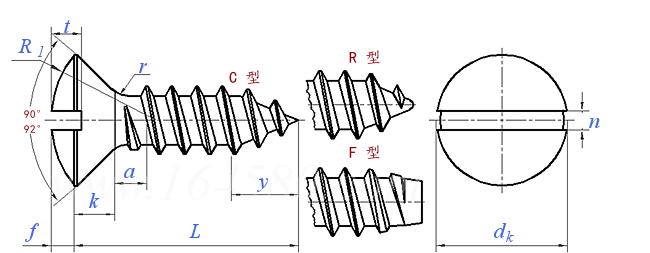

開槽半沉頭自攻螺釘 [Table 9] JIS B 1115 (T9) - 2015

選擇規格尺寸 點擊↓

ST2.2

ST2.9

ST3.5

ST4.2

ST4.8

ST5.5

ST6.3

ST8

ST9.5

JIS B 1115 (T9) - 2015 開槽半沉頭自攻螺釘 [Table 9]

尺寸單位: mm
日标JIS B1115 (T9) - 2015 JIS1115 1115JIS 開槽半沉頭自攻螺釘 [Table 9]
JIS B 1115 (T9) - 2015 開槽半沉頭自攻螺釘 [Table 9]
掃一掃分享
單重計算 公差
螺紋規格
d
ST2.2 ST2.9 ST3.5 ST4.2 ST4.8 ST5.5 ST6.3 ST8 ST9.5
P 螺距
a 最大值
dk 理論值
最大值
最小值
f ≈
k 最大值
n 公稱
最大值
最小值
r 最大值
R1 ≈
t 最大值
最小值
y C型
F型
R型
0.8 1.1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
0.8 1.1 1.3 1.4 1.6 1.8 1.8 2.1 2.1
4.4 6.3 8.2 9.4 10.4 11.5 12.6 17.3 20
3.8 5.5 7.3 8.4 9.3 10.3 11.3 15.8 18.3
3.5 5.2 6.9 8 8.9 9.9 10.9 15.4 17.8
0.5 0.7 0.8 1 1.2 1.3 1.4 2 2.3
1.1 1.7 2.35 2.6 2.8 3 3.15 4.65 5.25
0.5 0.8 1 1.2 1.2 1.6 1.6 2 2.5
0.7 1 1.2 1.51 1.51 1.91 1.91 2.31 2.81
0.56 0.86 1.06 1.26 1.26 1.66 1.66 2.06 2.56
0.8 1.2 1.4 1.6 2 2.2 2.4 3.2 3.8
4 6 8.5 9.5 9.5 11 12 16.5 19.5
1 1.45 1.7 1.9 2.4 2.6 2.8 3.7 4.4
0.8 1.2 1.4 1.6 2 2.2 2.4 3.2 3.8
2 2.6 3.2 3.7 4.3 5 6 7.5 8
1.6 2.1 2.5 2.8 3.2 3.6 3.6 4.2 4.2
/ / 2.7 3.2 3.6 4.3 5 6.3 /
替代列表
JIS B 1115T3 - 1996 JIS B 1115T9 - 2006

引用參考

GB /T 3098.5 - 2016
緊固件機械性能 - 自攻螺釘
GB /T 1172 - 1999
黑色金屬硬度及強度換算值
GB /T 5267.1 - 2002
鍍鋅、鍍鎳、鍍镉、複合鍍等層鍍層鹽霧腐蝕的防護性能
GB /T 193 - 2003
普通螺紋（一般用途米制螺紋）- 直徑與螺距系列 (ISO 261: 1998, MOD)
GB /T 5280 - 2002
自攻螺釘用螺紋
注：技術數據僅供參考，請以官方原件為準！
